Connector And Harness

Route the harness by referring to the following.

• Manual type

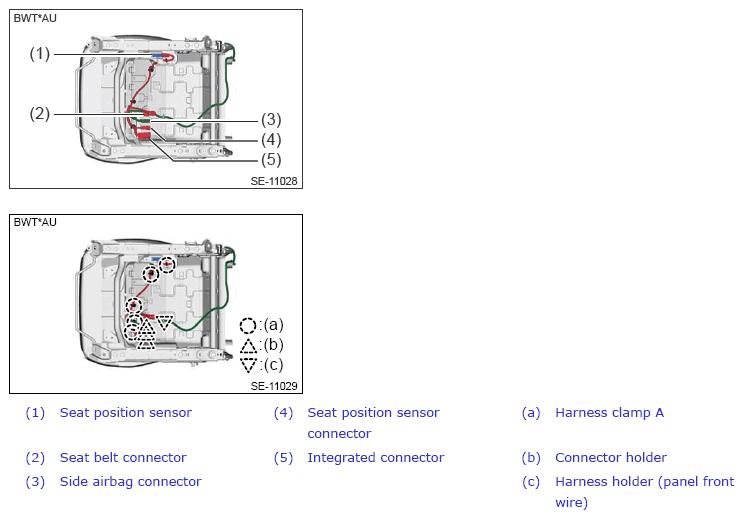

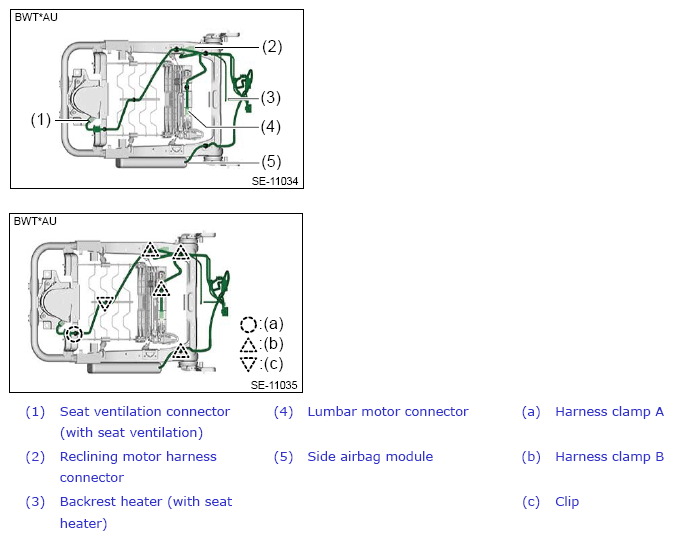

  • Driver's seat

    Courtesy of SUBARU OF AMERICA, INC.

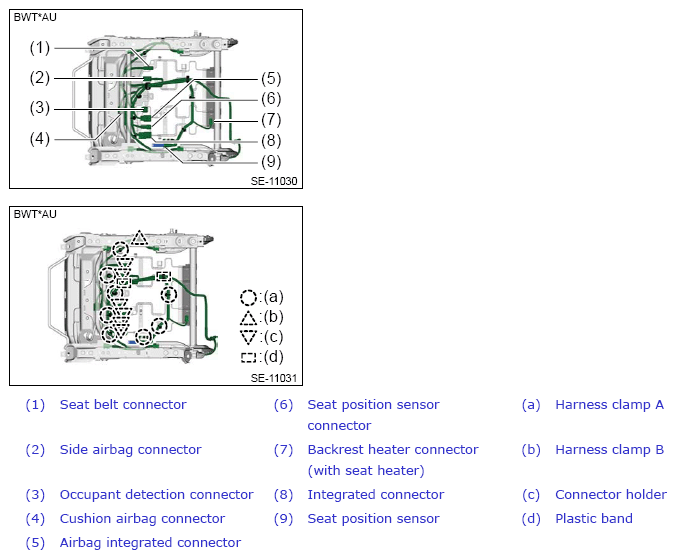

  • Passenger's seat

  Courtesy of SUBARU OF AMERICA, INC.

• Power type

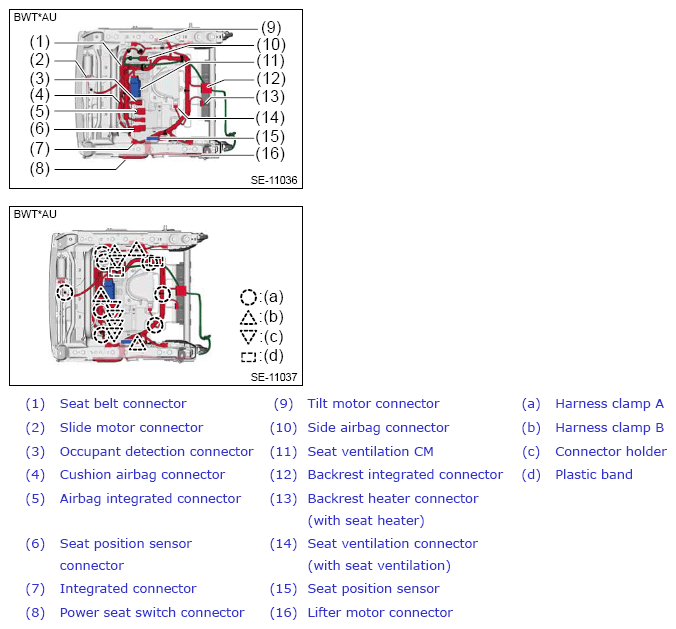

  • Driver's seat

    Courtesy of SUBARU OF AMERICA, INC.

    Courtesy of SUBARU OF AMERICA, INC.

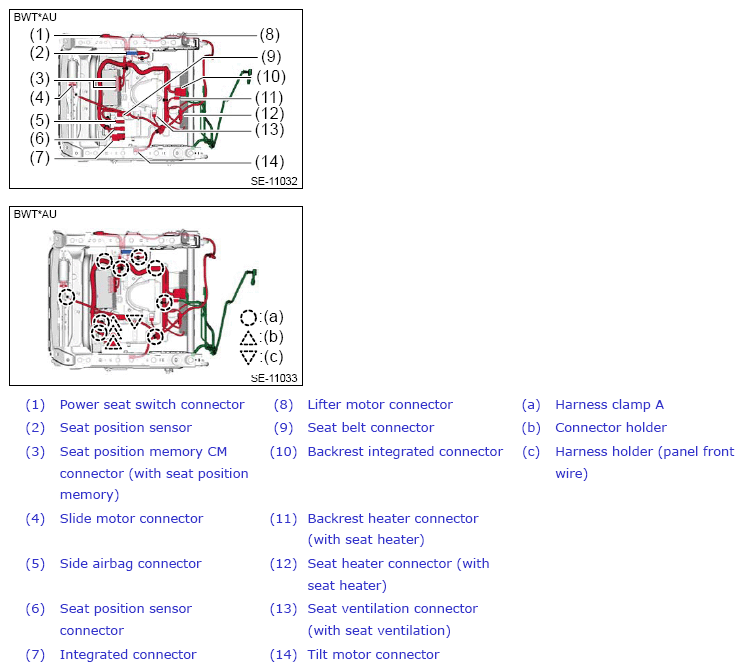

  • Passenger's seat

    Courtesy of SUBARU OF AMERICA, INC.
