Mode Door Actuator: Removal

CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  4. Remove the motor actuator mode.
    1. Disconnect the connector.

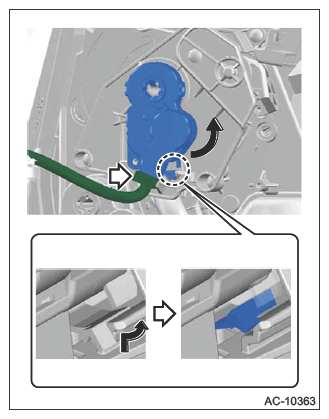

    2. Release the lock by turning as shown in the figure, and remove the motor actuator mode.
      G13226200Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bracket actuator mode.

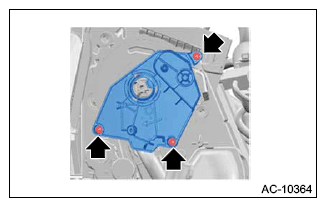

    1. Remove the screws, and remove the bracket actuator mode.
      G13226201Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the levers.
