Transmission Control Module

WARNING: This page is about a different variant/trim than selected.

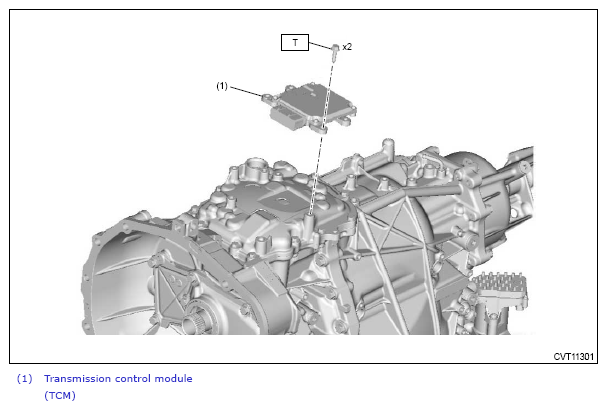

Fig 1: Transmission Control Module Components (With Torque Specification)
G14393840Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7 (0.7, 5.3)
