Reverse Brake

WARNING: This page is about a different variant/trim than selected.

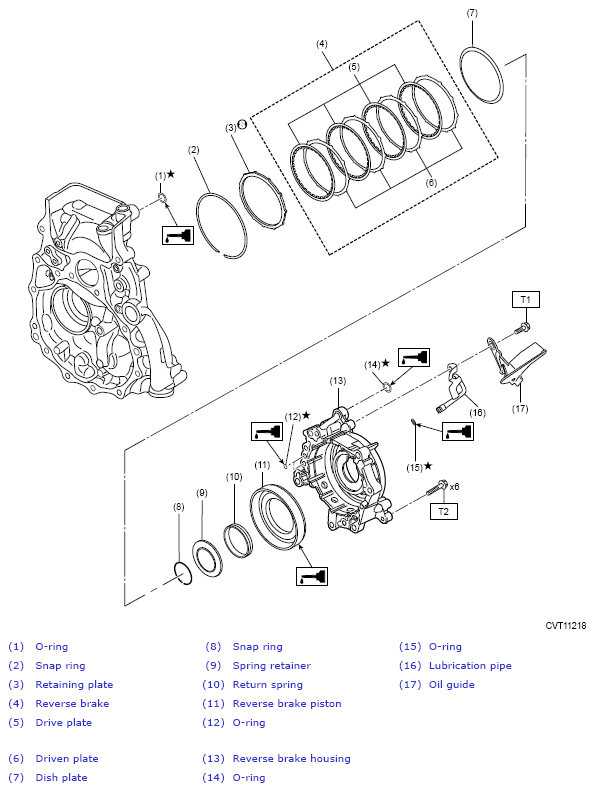

Fig 1: Reverse Brake Components (With Torque Specification)
G14393831Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 37 (3.8, 27.3)
