Electric Oil Pump

WARNING: This page is about a different variant/trim than selected.

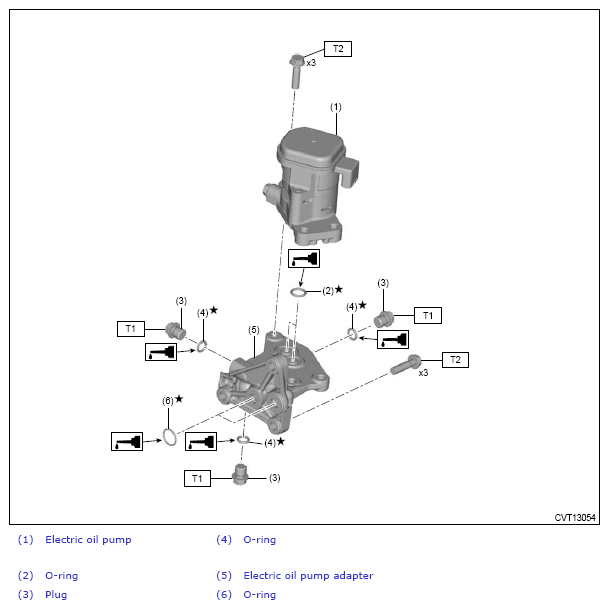

Fig 1: Electric Oil Pump Components (With Torque Specification)
G14393837Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 22 (2.2, 16.2)
