Differential Case

WARNING: This page is about a different variant/trim than selected.
  1. Remove the side bearing inner race using ST1, ST2, ST3 and a press.

    Preparation tool:

    ST1: REMOVER (498077000)

    ST2: REMOVER (899864100)

    ST3: SEAT (398497701)

    G11255998Courtesy of SUBARU OF AMERICA, INC.
  2. Using the ST, remove the spring pin.

    Preparation tool:

    ST: STRAIGHT PIN REMOVER (899904100)

    G11255999Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the pinion shaft, and remove the differential bevel pinion, differential bevel gear and thrust washer.

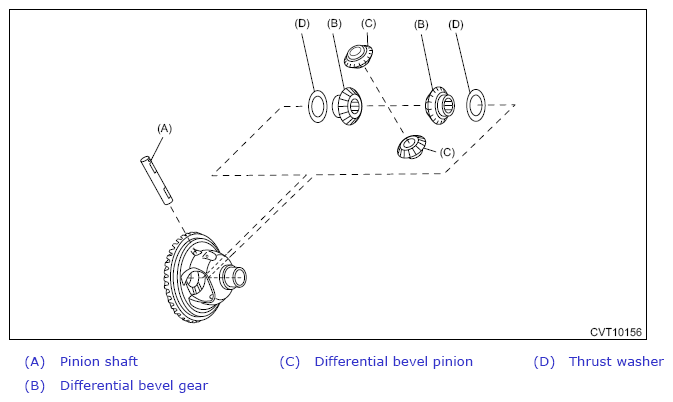

G14394320Courtesy of SUBARU OF AMERICA, INC.
