Transmission Case Side

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>TRANSMISSION ASSEMBLY>REMOVAL .

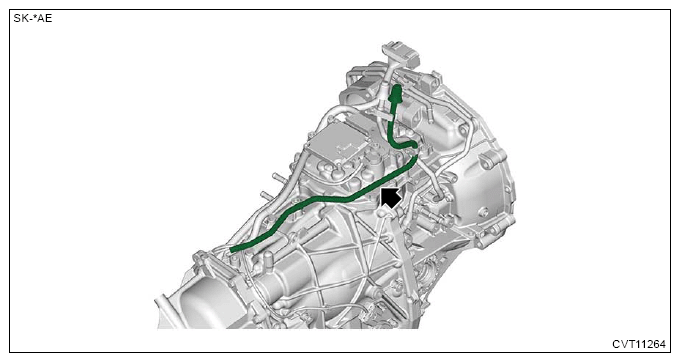

  2. Remove the air breather hose.
    G13225788Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air breather cap.
G13225787Courtesy of SUBARU OF AMERICA, INC.
