Front Differential Side

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip from the air intake boot, and loosen the clamp.
    G13223823Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13223824Courtesy of SUBARU OF AMERICA, INC.

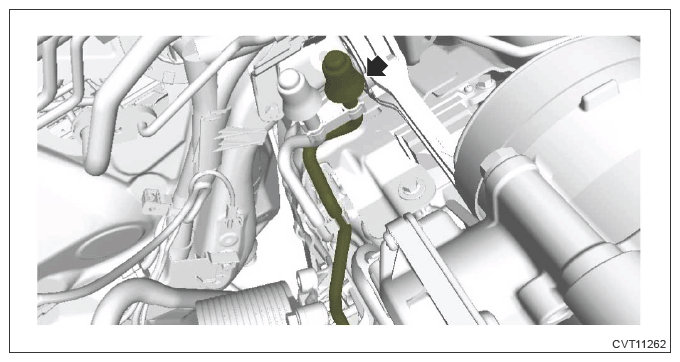

  3. Remove the air breather hose.
    G13225786Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air breather cap.
G13225787Courtesy of SUBARU OF AMERICA, INC.
