EGR Cooler: Removal

  1. Drain engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  2. Remove the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>REMOVAL .
  3. Remove the clip from the air intake boot, and loosen the clamp.
    G13223823Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13223824Courtesy of SUBARU OF AMERICA, INC.

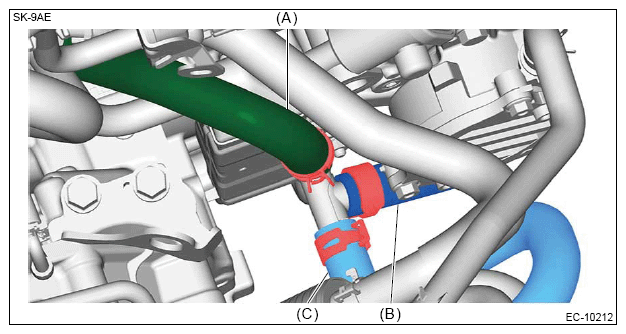

  5. Disconnect the water hose (A), water hose (B) and the water hose (C).
    G13224161Courtesy of SUBARU OF AMERICA, INC.

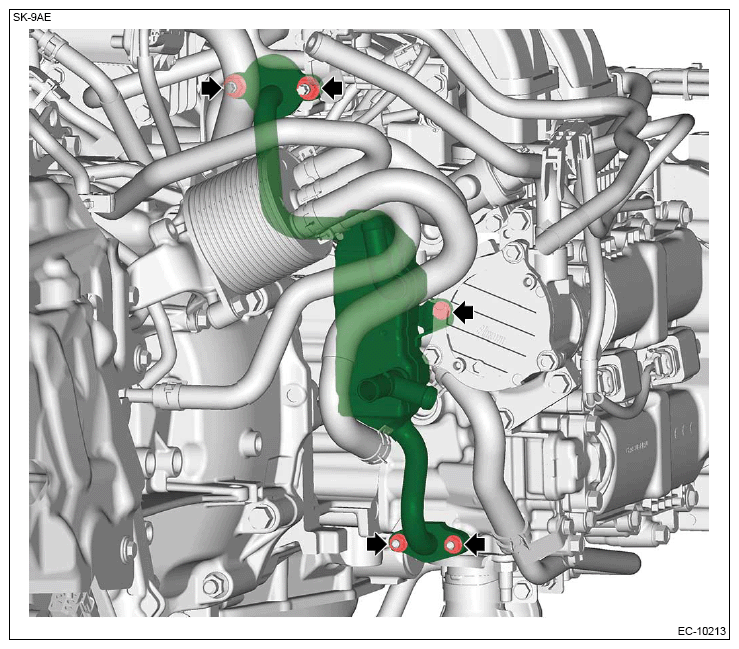

  6. Remove the nuts and bolts which secure the EGR cooler to the EGR control valve and cylinder head RH, and remove the EGR cooler.
    G13224162Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the gasket from the stud bolt.
    G13224163Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the water hose (A).
    NOTE: Perform this procedure only when required.
  9. Remove the stud bolt.
    NOTE: Perform this procedure only when required.
G13590495Courtesy of SUBARU OF AMERICA, INC.
