Air Conditioning System: Wiring Diagram

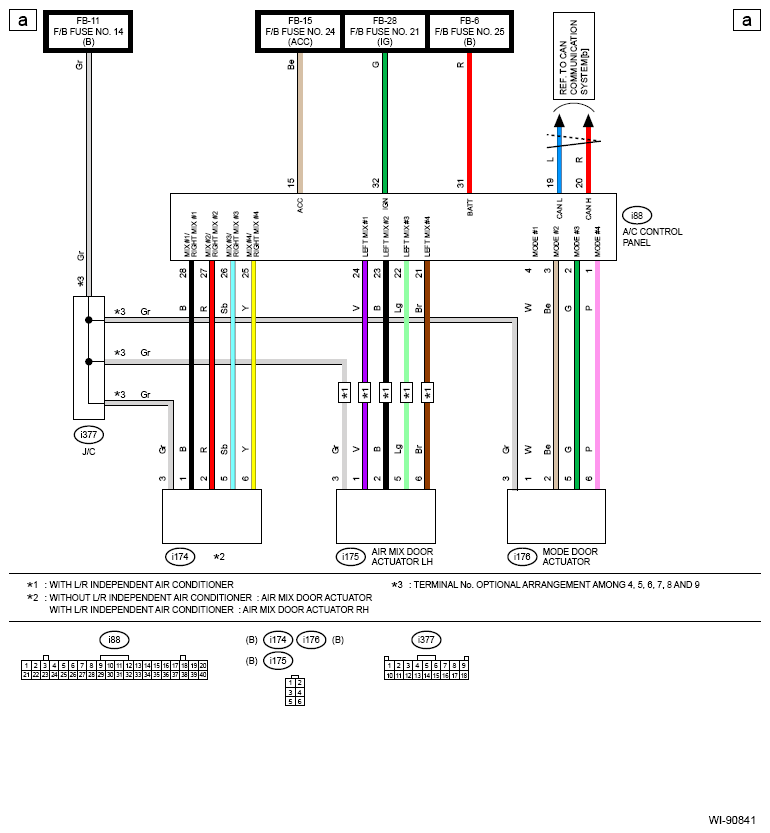

G13874654

Courtesy of SUBARU OF AMERICA, INC.

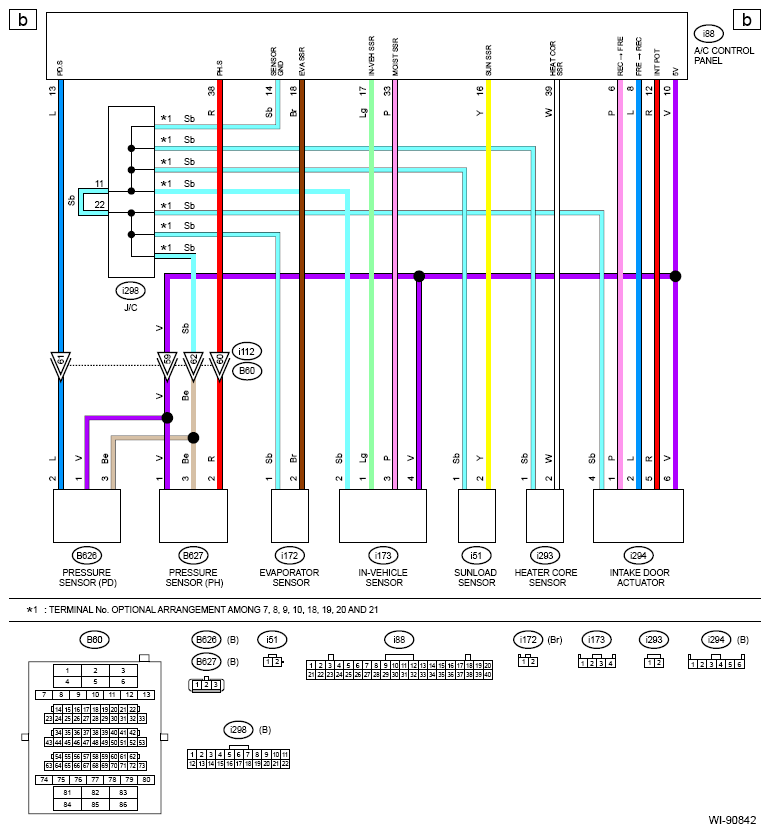

G13874655

Courtesy of SUBARU OF AMERICA, INC.

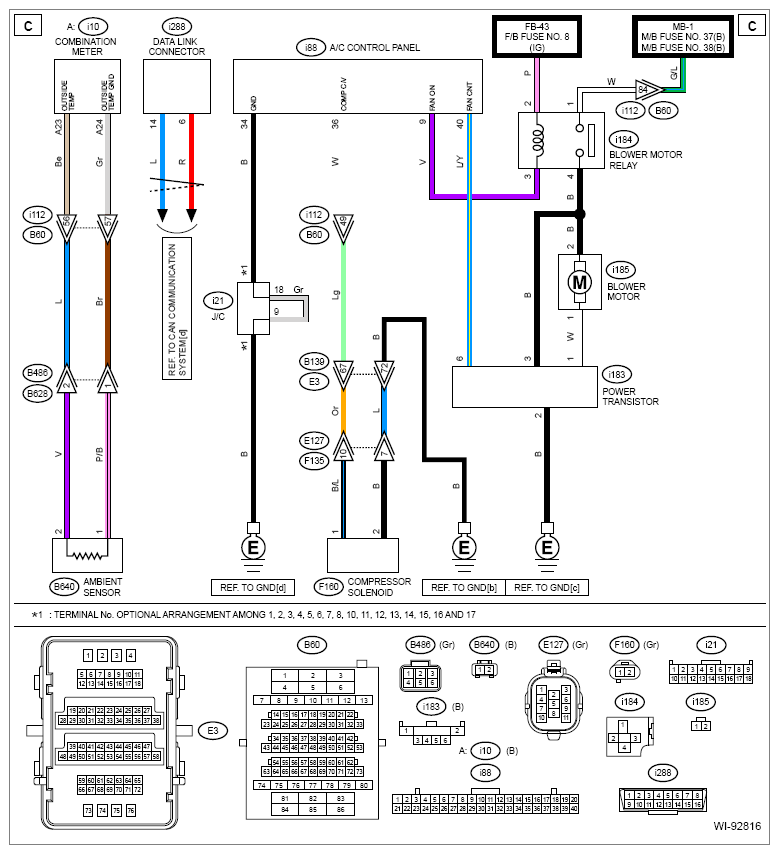

G14411741

Courtesy of SUBARU OF AMERICA, INC.
