Propeller Shaft: Installation

Apply CVTF to the oil seal lip and propeller shaft sleeve yoke.
Insert the sleeve yoke into the transmission and attach center bearing bolt.
CAUTION: Do not bend the joint of the propeller shaft more than required.

Tightening torque:

52 N.m (5.3 kgf-m, 38.4 ft-lb)

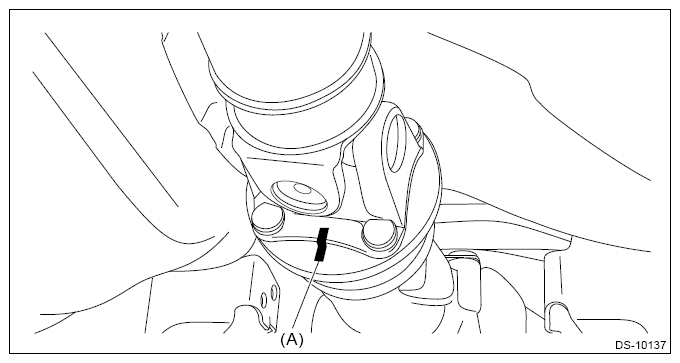

Align the alignment marks (A), and connect the propeller shaft and rear differential.
Tightening torque:

31 N.m (3.2 kgf-m, 22.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the rear exhaust pipe. Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>INSTALLATION .
Shift the select lever to "P range".
Apply the parking brake.
Check the CVTF level.
Except for WILDERNESS model:

Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (EXCEPT FOR WILDERNESS)>CVTF>INSPECTION .

WILDERNESS model:

Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580) (WILDERNESS)>CVTF>INSPECTION .
