Front Impact Sensor

CAUTION: Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

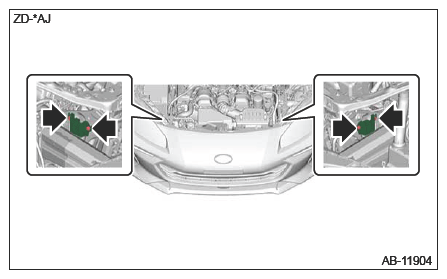

  2. Remove the Front impact sensor.
    1. Remove the flange bolt, and then remove Front impact sensor.
    2. Disconnect the airbag connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>EACH IMPACT SENSOR .
G16526717Courtesy of SUBARU OF AMERICA, INC.
