Ambient Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .

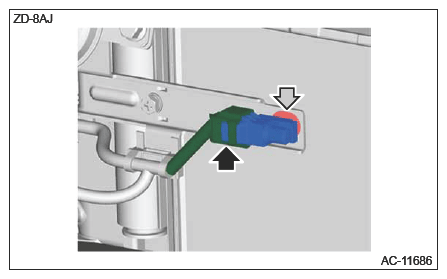

  3. Remove the ambient sensor.
    1. Disconnect the connector.
    2. Release the clips and remove the ambient sensor.
G16526612Courtesy of SUBARU OF AMERICA, INC.
