Tire Pressure Monitoring System: Wiring Diagram

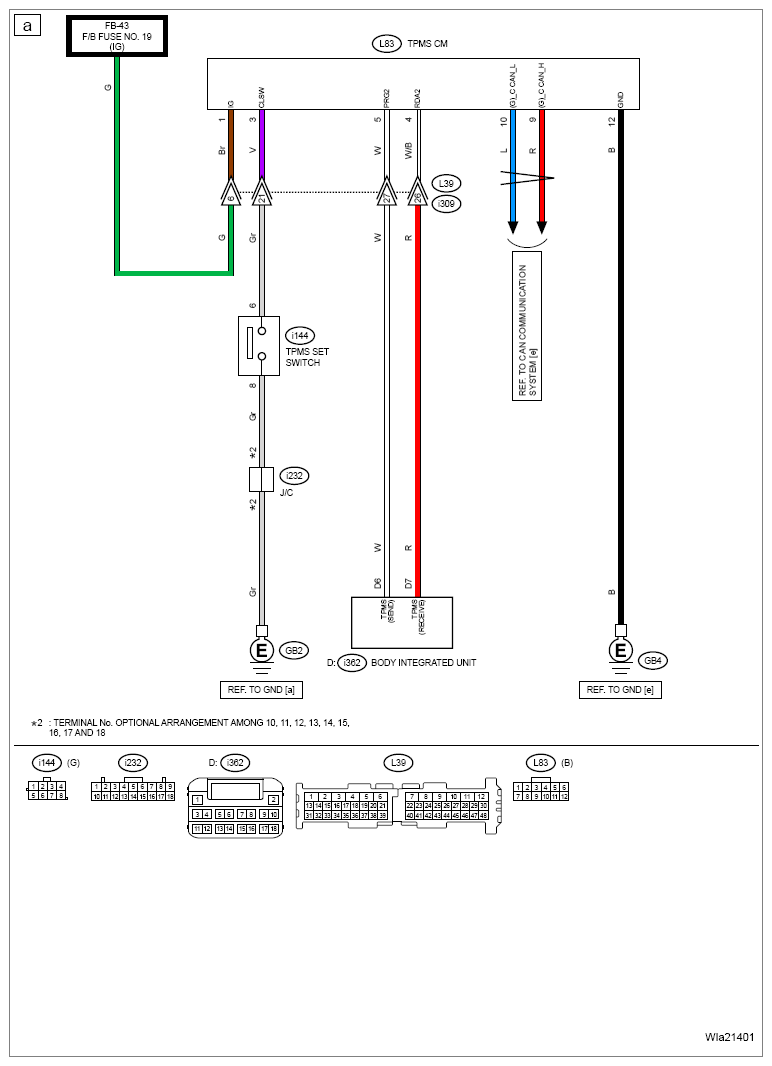

G16527678Courtesy of SUBARU OF AMERICA, INC.

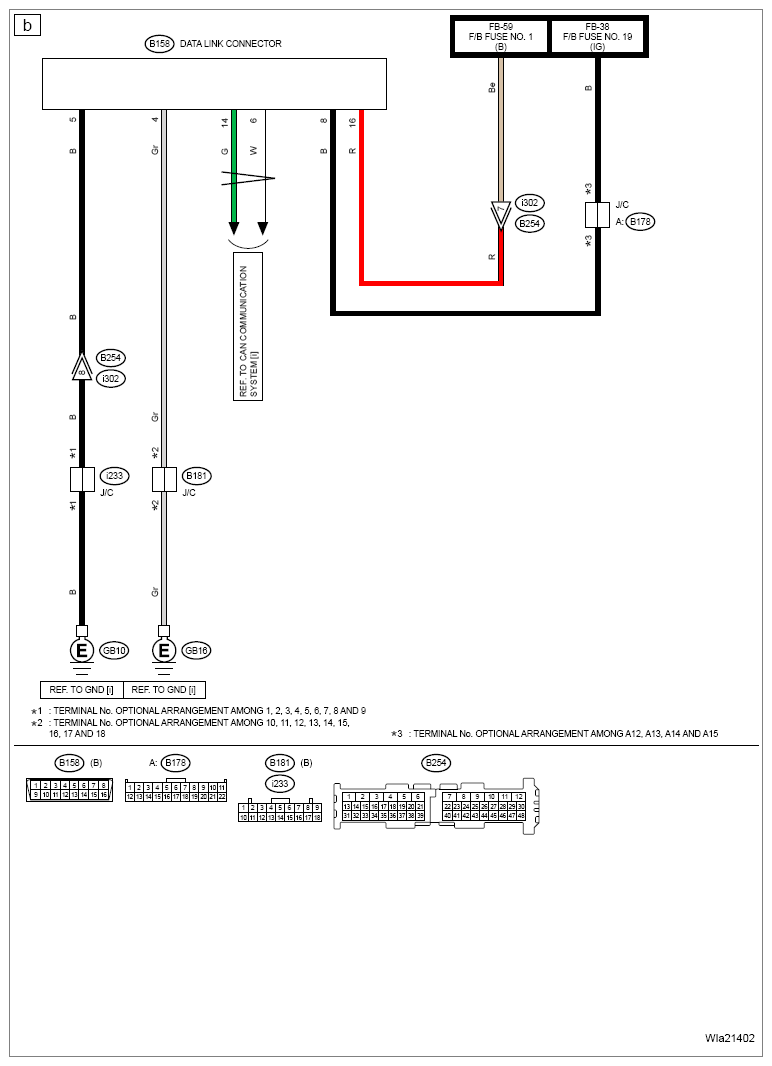

G16527679Courtesy of SUBARU OF AMERICA, INC.
