Shift Lock Control System: Wiring Diagram

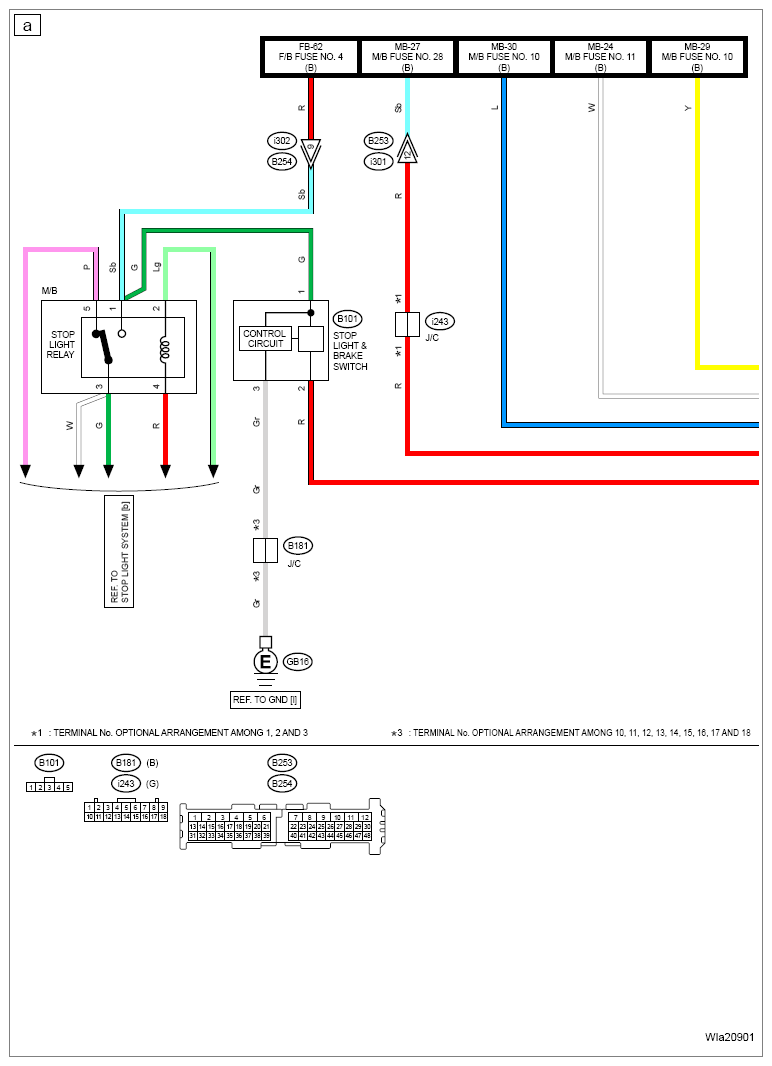

G16527666

Courtesy of SUBARU OF AMERICA, INC.

G16527667

Courtesy of SUBARU OF AMERICA, INC.

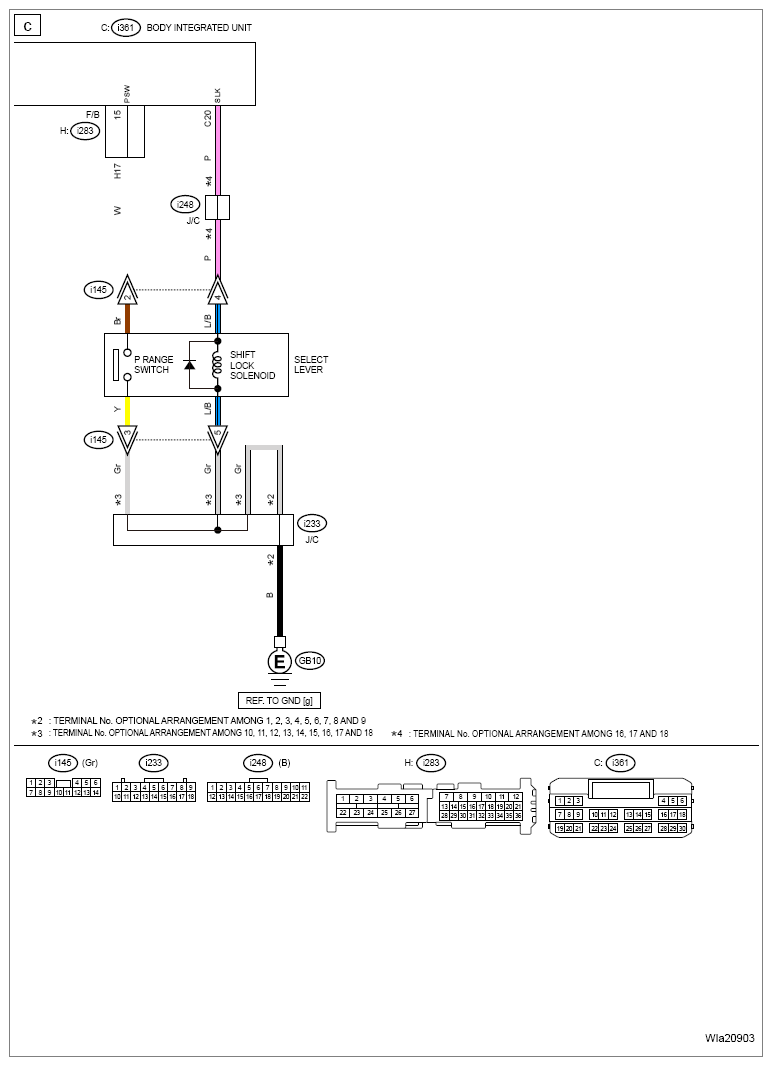

G16527668

Courtesy of SUBARU OF AMERICA, INC.
