Airbag System: Wiring Diagram

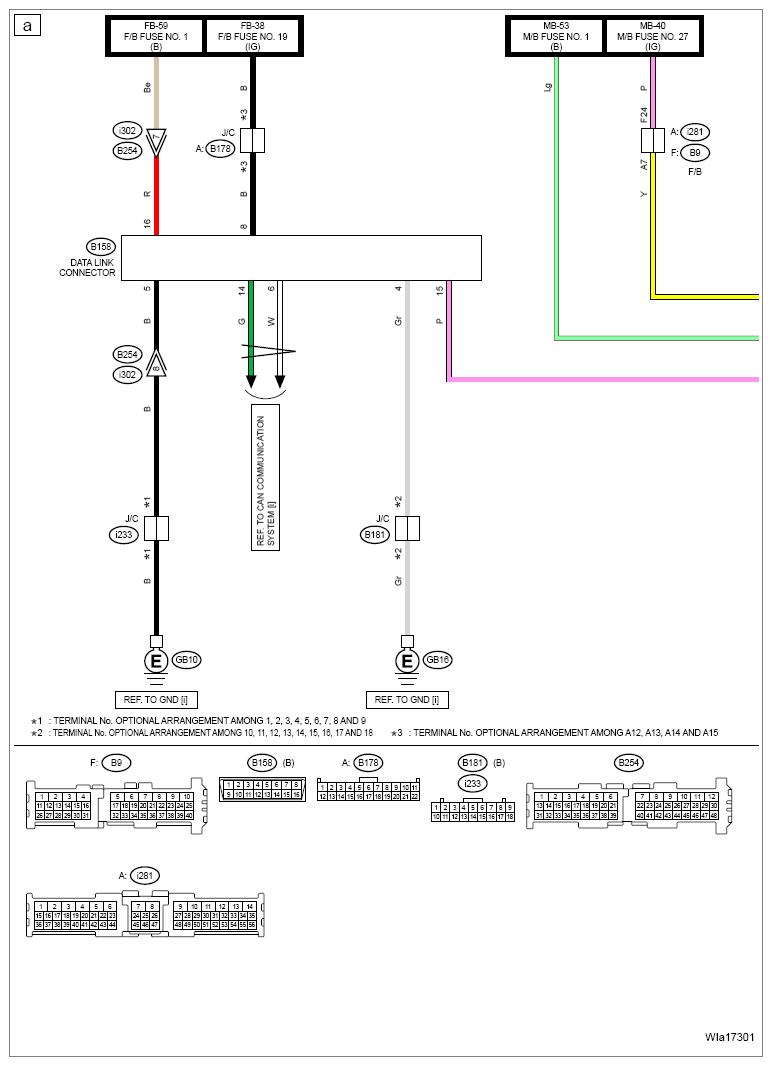

G16527523Courtesy of SUBARU OF AMERICA, INC.

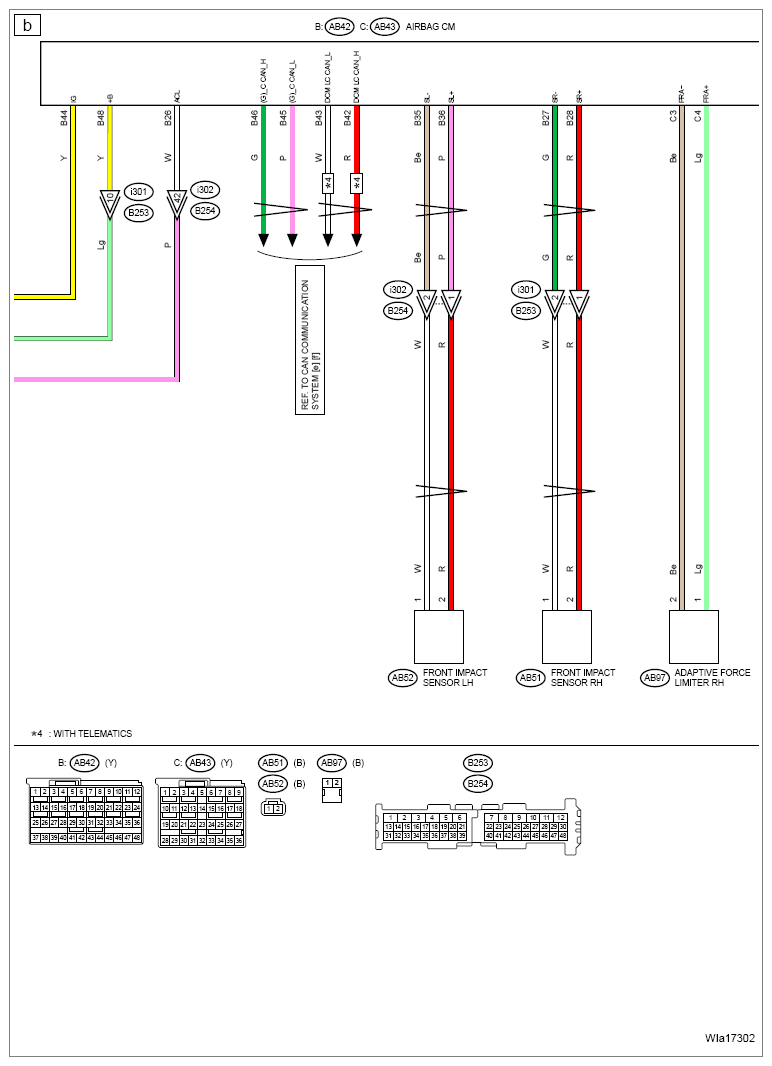

G16527524Courtesy of SUBARU OF AMERICA, INC.

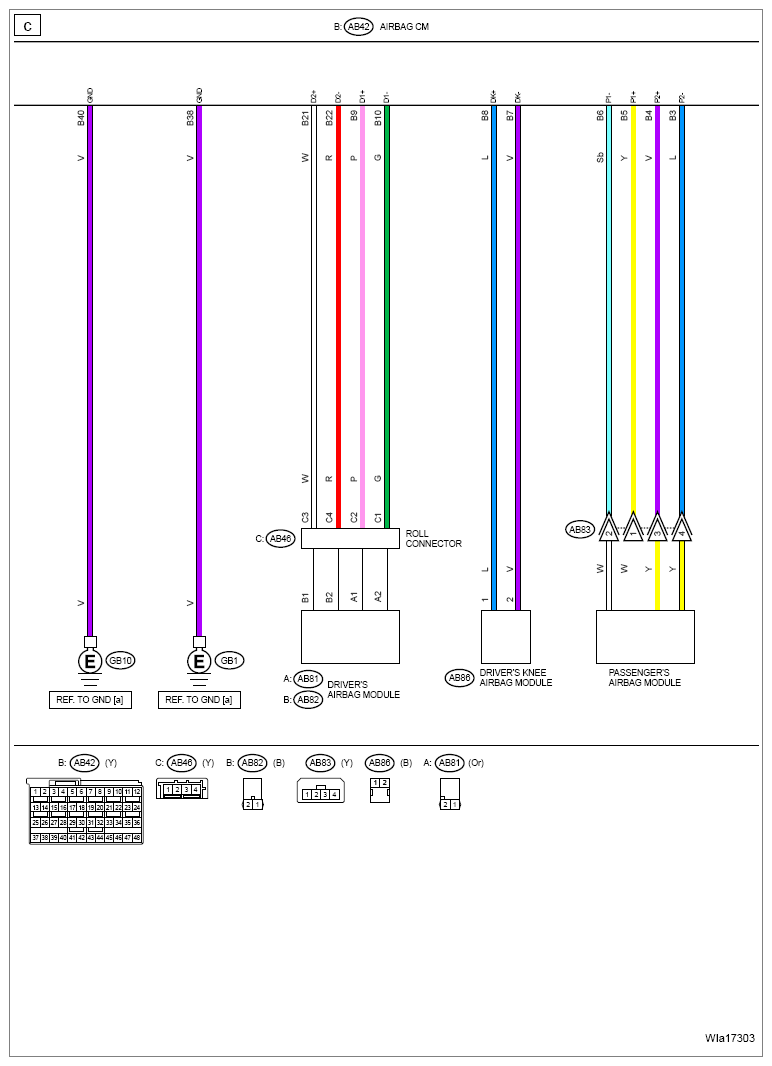

G16527525Courtesy of SUBARU OF AMERICA, INC.

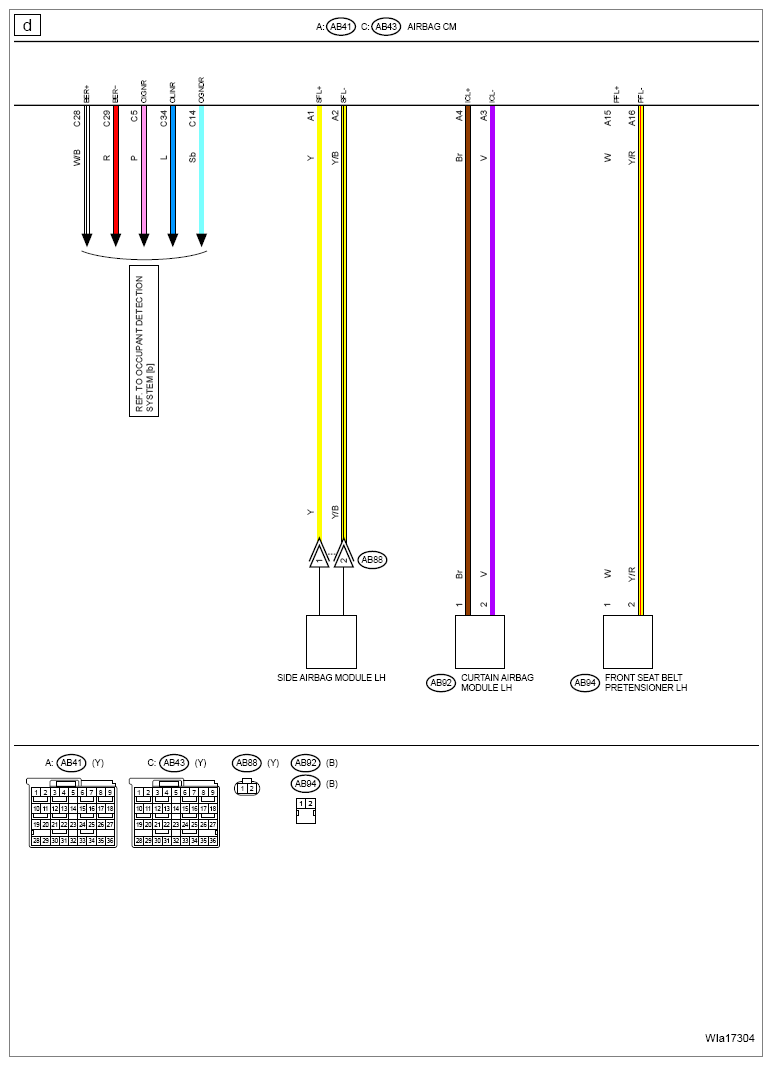

G16527526Courtesy of SUBARU OF AMERICA, INC.

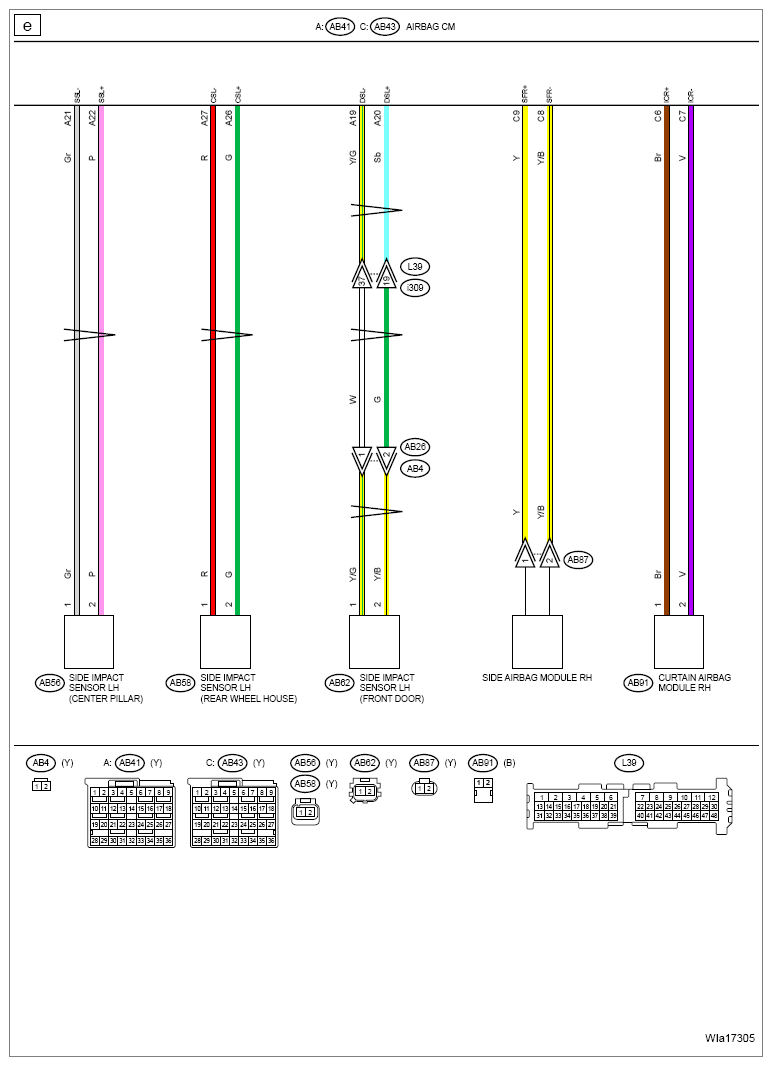

G16527527Courtesy of SUBARU OF AMERICA, INC.

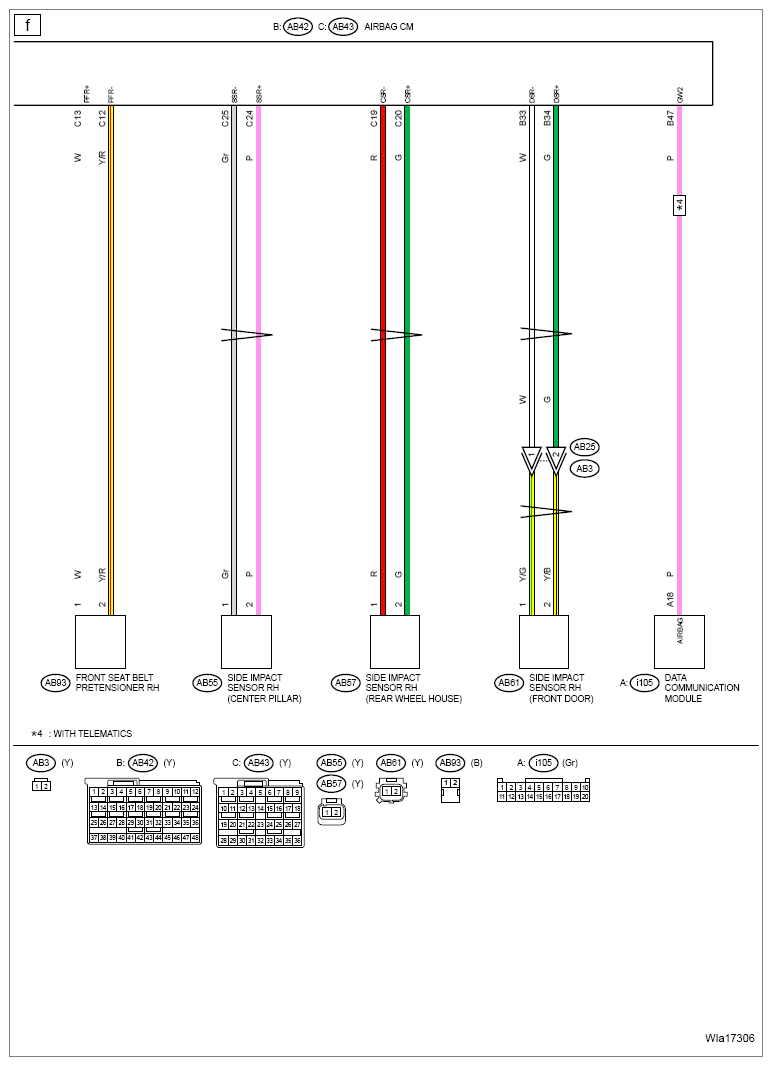

G16527528Courtesy of SUBARU OF AMERICA, INC.
