DTC C1241: Rear Left Abs Sensor Circuit

DTC detecting condition:

Judge as malfunction when the current value of the wheel speed sensor is out of normal range for a predetermined time or more.

Trouble symptom:

NOTE: This DTC may be stored when the wheel speed sensor connector is disconnected regardless of the ignition switch condition (ON/OFF). Perform the Clear Memory after diagnosis if a DTC is recorded. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY .

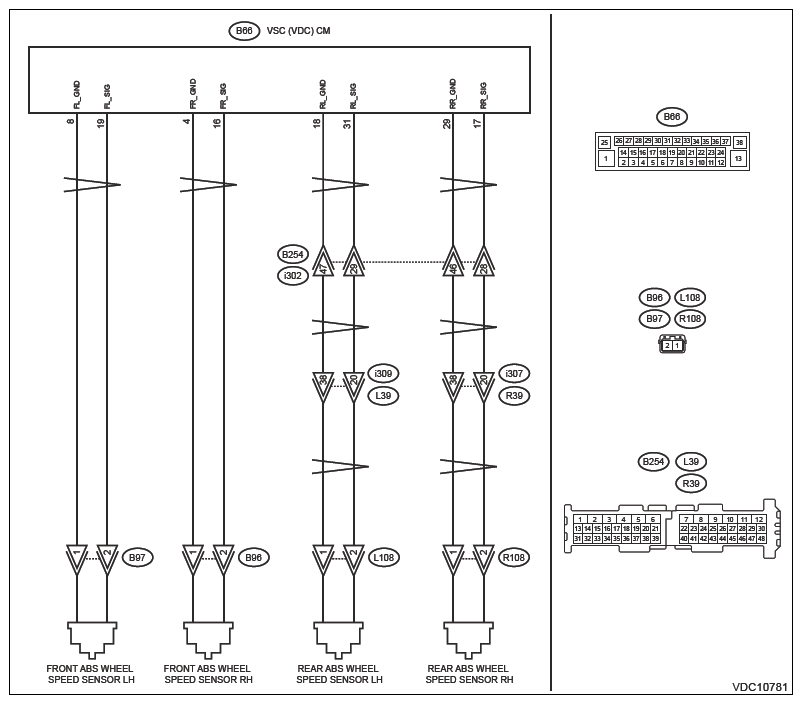

Wiring diagram:

Vehicle stability control system Ref. to WIRING SYSTEM>VEHICLE STABILITY CONTROL SYSTEM .

G16528116Courtesy of SUBARU OF AMERICA, INC.
G16528115Courtesy of SUBARU OF AMERICA, INC.
  1. CHECK POOR CONTACT OF CONNECTOR  .

    Check if there is poor contact between VSC (VDC) Control Module & H/U and ABS wheel speed sensor.

    Is there poor contact?

    Yes:  Repair the connector.

    No:  Go to  2.

  2. CHECK HARNESS CONNECTOR BETWEEN VSC (VDC) CONTROL MODULE & H/U AND ABS WHEEL SPEED SENSOR (CHECK FOR OPEN CIRCUIT)  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector (B66) from the VSC (VDC) Control Module & H/U.
    3. Disconnect the connector from ABS wheel speed sensor.
    4. Measure the resistance between VSC (VDC) Control Module & H/U connector and ABS wheel speed sensor connector.

      Connector & terminal

      DTC C1211

      (B66) No. 4 - (B96) No. 1:

      (B66) No. 16 - (B96) No. 2:

      DTC C1221

      (B66) No. 8 - (B97) No. 1:

      (B66) No. 19 - (B97) No. 2:

      DTC C1231

      (B66) No. 29 - (R108) No. 1:

      (B66) No. 17 - (R108) No. 2:

      DTC C1241

      (B66) No. 18 - (L108) No. 1:

      (B66) No. 31 - (L108) No. 2:

    Is the resistance less than 1 Ω?

    Yes:  Go to  3.

    No:  Repair the harness connector between VSC (VDC) Control Module & H/U and ABS wheel speed sensor.

  3. CHECK GROUND SHORT OF HARNESS  .

    Measure the resistance between VSC (VDC) Control Module & H/U connector and chassis ground.

    Connector & terminal

    DTC C1211

    (B66) No. 4 - Chassis ground:

    DTC C1221

    (B66) No. 8 - Chassis ground:

    DTC C1231

    (B66) No. 29 - Chassis ground:

    DTC C1241

    (B66) No. 18 - Chassis ground:

    Is the resistance 1 MΩ or more?

    Yes:  Go to  4.

    No:  Repair the harness connector between VSC (VDC) Control Module & H/U and ABS wheel speed sensor.

  4. CHECK ABS WHEEL SPEED SENSOR POWER SUPPLY CIRCUIT  .
    1. Connect the VSC (VDC) Control Module & H/U connector.
    2. Connect the ABS wheel speed sensor connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage between ABS wheel speed sensor connector and chassis ground.

      Connector & terminal

      DTC C1211

      (B96) No. 2 (+) - Chassis ground (-):

      DTC C1221

      (B97) No. 2 (+) - Chassis ground (-):

      DTC C1231

      (R108) No. 2 (+) - Chassis ground (-):

      DTC C1241

      (L108) No. 2 (+) - Chassis ground (-):

    Is the voltage 5 - 16 V?

    Yes:  Go to  6.

    No:  Go to  5.

  5. CHECK VSC (VDC) CONTROL MODULE & H/U POWER SUPPLY CIRCUIT  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the VSC (VDC) Control Module & H/U connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage between VSC (VDC) Control Module & H/U connector terminals.

      Connector & terminal

      (B66) No. 1 (+) - (B66) No. 13 (-):

      (B66) No. 25 (+) - (B66) No. 38 (-):

      (B66) No. 28 (+) - (B66) No. 38 (-):

    Is the voltage 10 - 15 V?

    Yes:  Go to  6.

    No:  Check the generator, battery and VSC (VDC) Control Module & H/U power supply circuit.

  6. CHECK ABS WHEEL SPEED SENSOR  .

    Check the ABS wheel speed sensor. Ref. to VEHICLE STABILITY CONTROL>FRONT ABS WHEEL SPEED SENSOR>INSPECTION . Ref. to VEHICLE STABILITY CONTROL>REAR ABS WHEEL SPEED SENSOR>INSPECTION .

    Is the check result OK?

    Yes:  Go to  7.

    No:  Replace the ABS wheel speed sensor. Ref. to VEHICLE STABILITY CONTROL>FRONT ABS WHEEL SPEED SENSOR . Ref. to VEHICLE STABILITY CONTROL>REAR ABS WHEEL SPEED SENSOR .

  7. CHECK VSC (VDC) CONTROL MODULE & H/U  .
    1. Connect all connectors.
    2. Using the Subaru Select Monitor, perform the clear memory of [Brake Control]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY .
    3. Execute the inspection mode. Ref. to BRAKE CONTROL (DIAGNOSTICS)>INSPECTION MODE .
    4. Read the DTC of [Brake Control] using the Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

      Is the same DTC displayed?

    Yes:  Replace the VSC (VDC) Control Module & H/U. Ref. to VEHICLE STABILITY CONTROL>VSC (VDC) CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VSCCM & H/U) .

    No:  Go to  8.

  8. CHECK DETECTION OF OTHER DTCS FOR VSC (VDC)  .

    Read the DTC of [Brake Control] using the Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

    Is any other DTC displayed?

    Yes:  Perform the diagnosis according to the DTC. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST .

    No:  Currently, it is normal. There may have been a temporary poor contact in the harness and connector or a temporary noise interference.
