Front Under Cover: Removal

NOTE: Condensed water from the air conditioner may accumulate in the under cover COMPL front T/M. Discharge the water before starting any work.
  1. Lift up the vehicle.

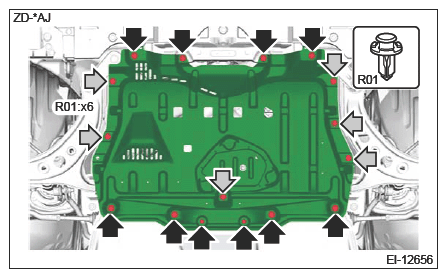

  2. Remove the bolts and clips, and remove the under cover front.
    G16527228Courtesy of SUBARU OF AMERICA, INC.

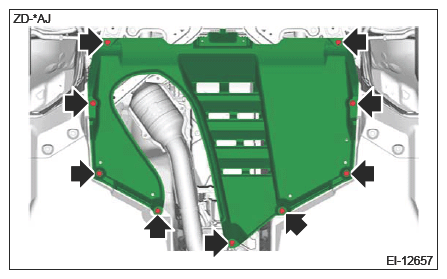

  3. Remove the bolts, and remove the under cover COMPL front T/M.
    G16527229Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

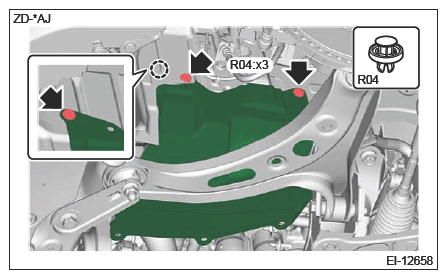

  5. Remove the clips, and remove the under cover front side.
    G16527230Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the under cover rear. Ref. to EXTERIOR/INTERIOR TRIM>FLOOR UNDER PROTECTOR>REMOVAL .

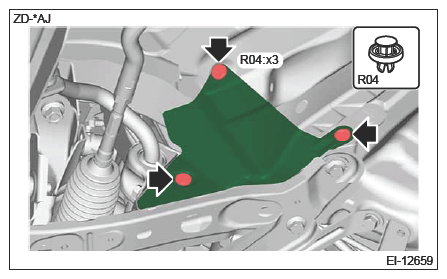

  7. Remove the clips, and remove the under cover front side rear.
G16524789Courtesy of SUBARU OF AMERICA, INC.
