Door Trim: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel front door.

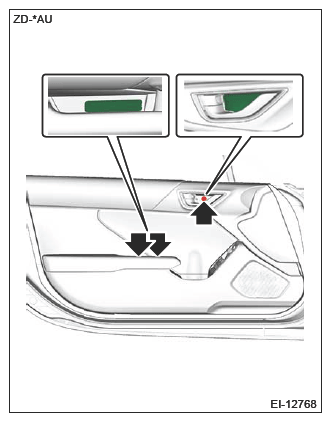

    1. Remove the cap remote and then remove the screws.
    2. Remove the cap pull handle, and then remove the screws.
      G16527283Courtesy of SUBARU OF AMERICA, INC.

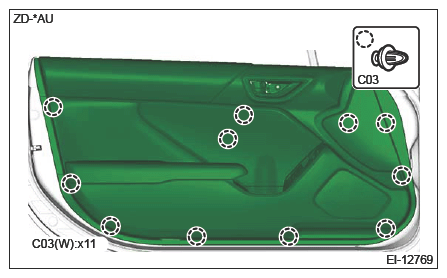

    3. Release the clips.
      G16527284Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the trim panel front door while pulling it toward the upper side of the vehicle.
    5. Remove the cable from the remote assembly door.
      G11246523Courtesy of SUBARU OF AMERICA, INC.
      (a) Door lock cable
      (b) Door open cable
    6. Disconnect each connector, and remove the trim panel front door.
  3. Remove each part as required.
