Telematics System (Diagnostics): Electrical Component Location: Location

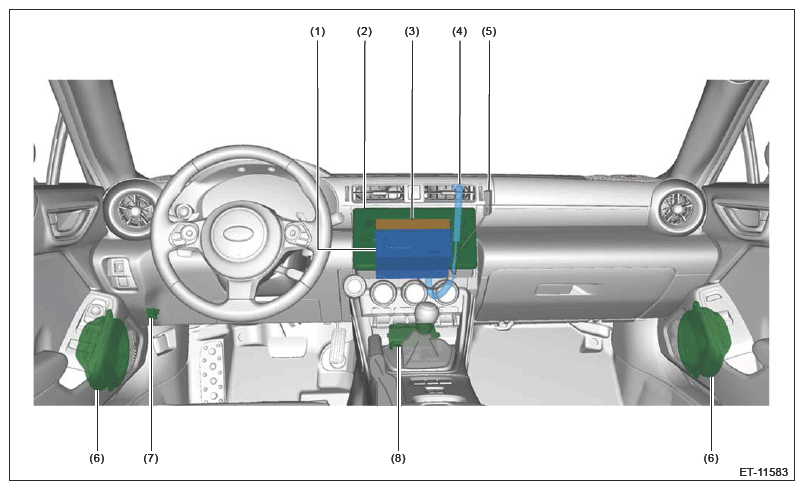

Courtesy of SUBARU OF AMERICA, INC.

(1)	Cockpit control module
(2)	Center information display
(3)	Data communication module (DCM)
(4)	GPS antenna
(5)	Telematics sub antenna
(6)	Front door speaker
(7)	Data link connector
(8)	Airbag Control Module

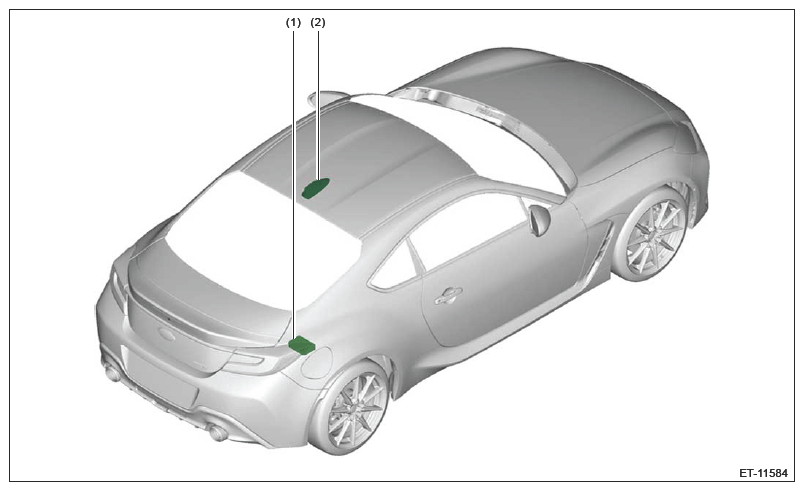

Courtesy of SUBARU OF AMERICA, INC.

(1)	Audio amplifier
(2)	Telematics antenna

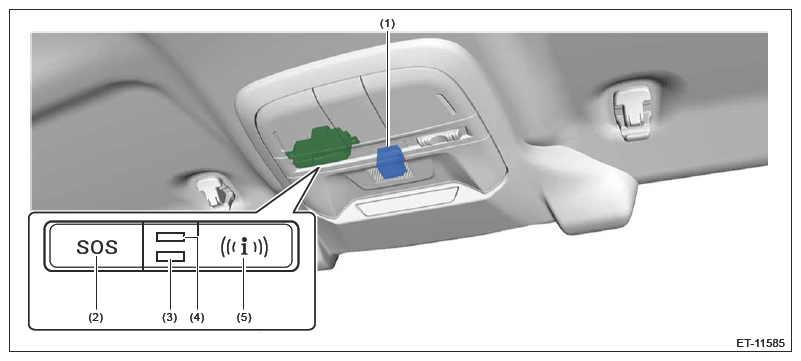

Courtesy of SUBARU OF AMERICA, INC.

(1)	Microphone
(2)	SOS button
(3)	RED LED
(4)	GREEN LED
(5)	i-button

NOTE: For the LED operation condition, refer to "LED operation condition" in "Check List for Interview". Ref. to TELEMATICS SYSTEM (DIAGNOSTICS)>CHECK LIST FOR INTERVIEW>CHECK>LED ILLUMINATION STATUS LIST .
