Models With Eyesight

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly stereo camera. Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .

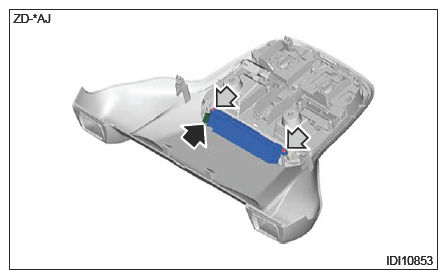

  3. Remove connector and screw, and remove the warning box.
G16527057Courtesy of SUBARU OF AMERICA, INC.
