Sunroof Control System: Wiring Diagram

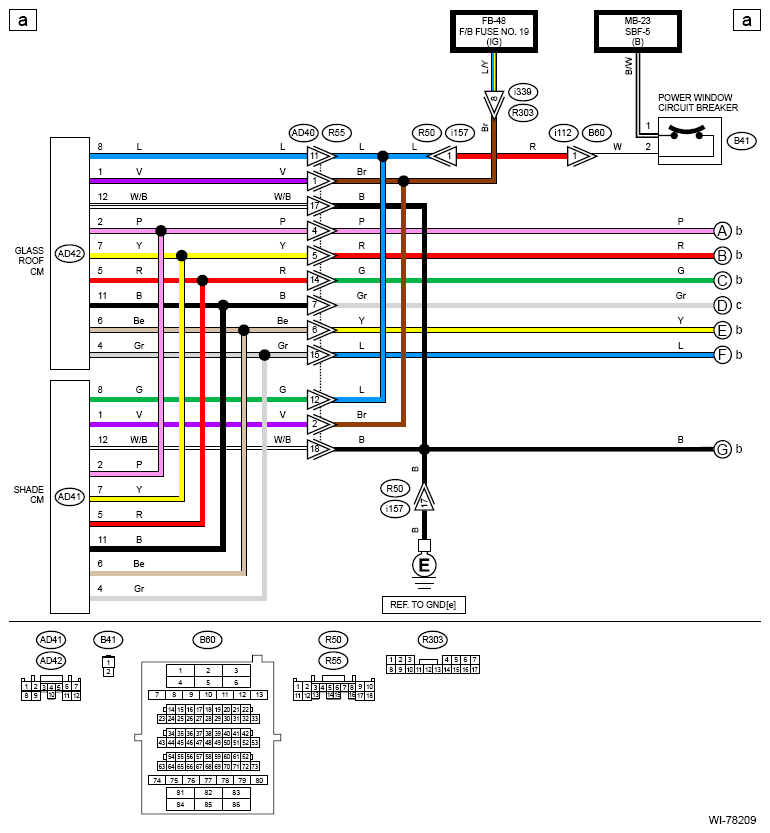

G13866102

Courtesy of SUBARU OF AMERICA, INC.

G13866103

Courtesy of SUBARU OF AMERICA, INC.

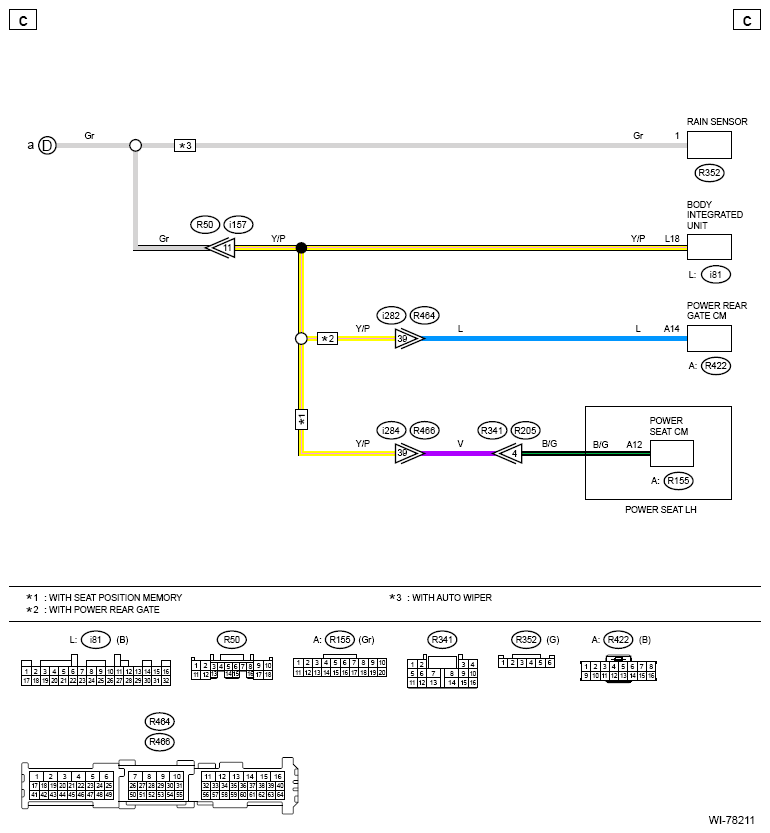

G13866104

Courtesy of SUBARU OF AMERICA, INC.
