Shift Lock Control System: Wiring Diagram

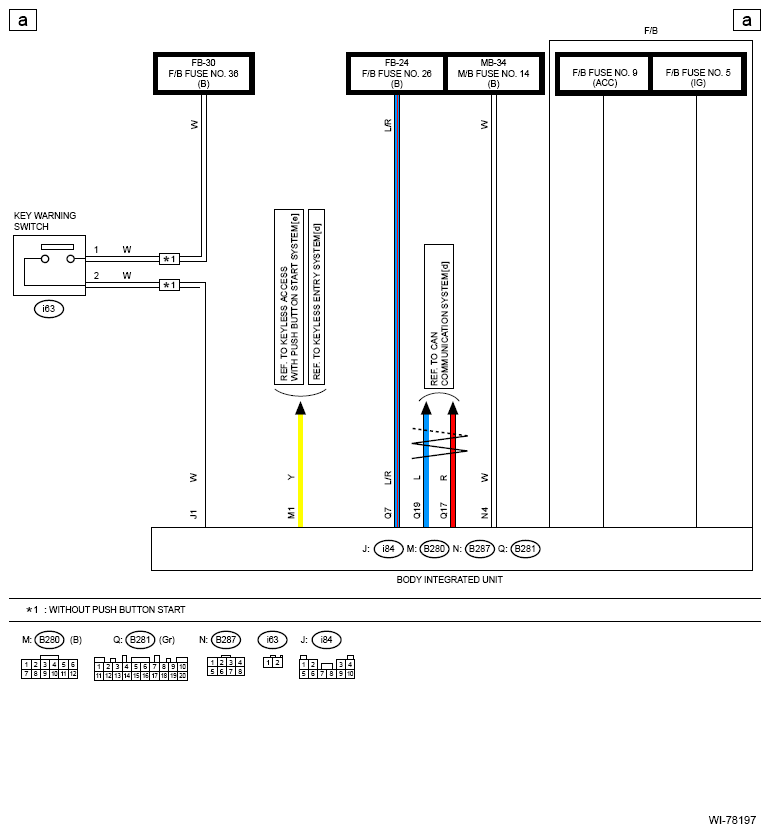

G13866090Courtesy of SUBARU OF AMERICA, INC.

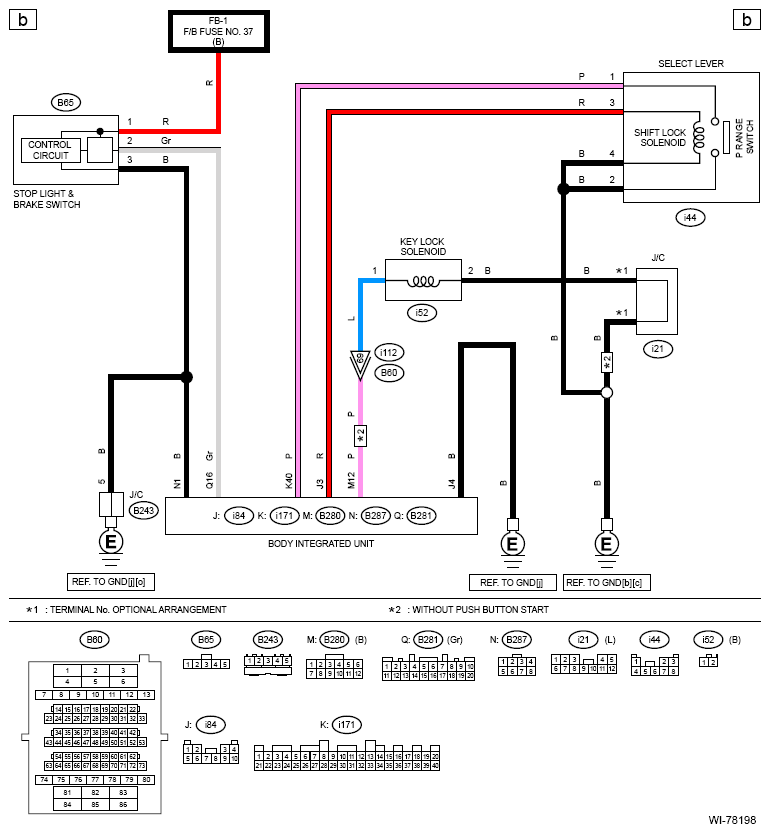

G13866091Courtesy of SUBARU OF AMERICA, INC.
