DTC C1241: Rear Left Abs Sensor Circuit

DTC detecting condition:

Judge as malfunction when the current value of the ABS wheel speed sensor is out of normal range for a predetermined time or more.

Trouble symptom:

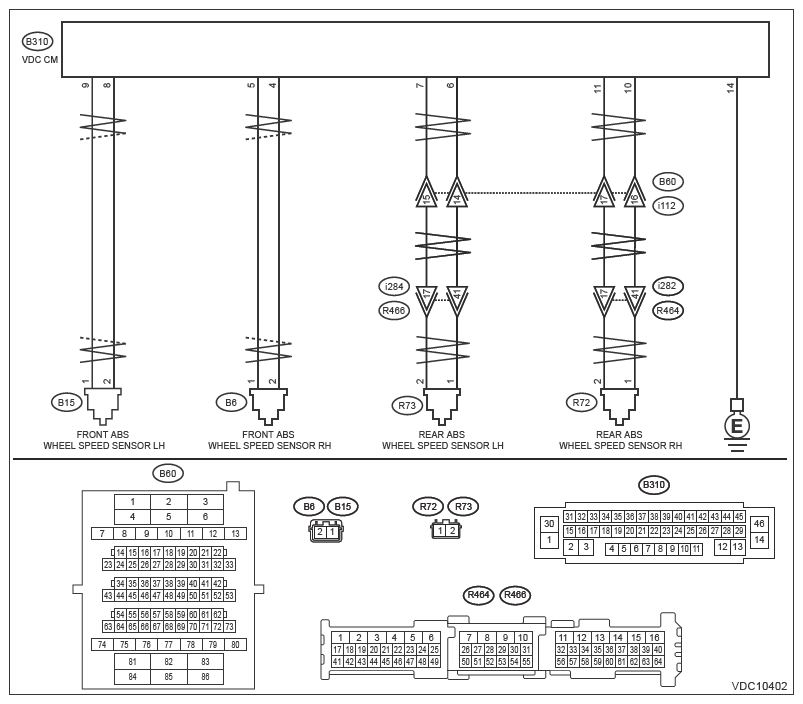

Wiring diagram:

Vehicle dynamics control system Ref. to WIRING SYSTEM>VEHICLE DYNAMICS CONTROL SYSTEM .

G13866948Courtesy of SUBARU OF AMERICA, INC.
G13866949Courtesy of SUBARU OF AMERICA, INC.
NOTE: This DTC may be stored when the ABS wheel speed sensor connector is disconnected regardless of the ignition switch condition (ON/OFF). Perform the Clear Memory Mode after diagnosis if a DTC is recorded. Ref. to COMMON (diag)>CLEAR MEMORY .
  1. CHECK POOR CONTACT OF CONNECTOR  .

    Check if there is poor contact between VDCCM&H/U and ABS wheel speed sensor.

    Is there poor contact?

    Yes:  Repair the connector.

    No:  Go to  2.

  2. CHECK HARNESS CONNECTOR BETWEEN VDCCM&H/U AND ABS WHEEL SPEED SENSOR (CHECK FOR OPEN CIRCUIT)  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector (B310) from the VDCCM&H/U.
    3. Disconnect the connector from ABS wheel speed sensor.
    4. Measure the resistance between VDCCM&H/U connector and ABS wheel speed sensor connector.

      Connector & terminal

      DTC C1211

      (B310) No. 5 - (B6) No. 1:

      (B310) No. 4 - (B6) No. 2:

      DTC C1221

      (B310) No. 9 - (B15) No. 1:

      (B310) No. 8 - (B15) No. 2:

      DTC C1231

      (B310) No. 10 - (R72) No. 1:

      (B310) No. 11 - (R72) No. 2:

      DTC C1241

      (B310) No. 6 - (R73) No. 1:

      (B310) No. 7 - (R73) No. 2:

    Is the resistance less than 1 Ω?

    Yes:  Go to  3.

    No:  Repair the harness connector between VDCCM&H/U and ABS wheel speed sensor.

  3. CHECK GROUND SHORT OF HARNESS  .

    Measure the resistance between VDCCM&H/U connector and chassis ground.

    Connector & terminal

    DTC C1211

    (B310) No. 4 - Chassis ground:

    DTC C1221

    (B310) No. 8 - Chassis ground:

    DTC C1231

    (B310) No. 10 - Chassis ground:

    DTC C1241

    (B310) No. 6 - Chassis ground:

    Is the resistance 1 MΩ or more?

    Yes:  Go to  4.

    No:  Repair the harness connector between VDCCM&H/U and ABS wheel speed sensor.

  4. CHECK ABS WHEEL SPEED SENSOR POWER SUPPLY CIRCUIT  .
    1. Connect the VDCCM&H/U connector.
    2. Connect the ABS wheel speed sensor connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage between ABS wheel speed sensor connector and chassis ground.

      Connector & terminal

      DTC C1211

      (B6) No. 1 (+) - Chassis ground (-):

      DTC C1221

      (B15) No. 1 (+) - Chassis ground (-):

      DTC C1231

      (R72) No. 2 (+) - Chassis ground (-):

      DTC C1241

      (R73) No. 2 (+) - Chassis ground (-):

      Is the voltage 5 - 16 V?

    Yes:  Go to  6.

    No:  Go to  5.

  5. CHECK VDCCM&H/U POWER SUPPLY CIRCUIT  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the VDCCM&H/U connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage between VDCCM&H/U connector terminals.

      Connector & terminal

      (B310) No. 1 (+) - (B310) No. 14 (-):

      (B310) No. 30 (+) - (B310) No. 14 (-):

      (B310) No. 35 (+) - (B310) No. 14 (-):

    Is the voltage 10 - 15 V?

    Yes:  Go to  6.

    No:  Check the generator, battery and VDCCM&H/U power supply circuit.

  6. CHECK ABS WHEEL SPEED SENSOR  .

    Check the ABS wheel speed sensor. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>Front ABS Wheel Speed Sensor>INSPECTION . Ref. to VEHICLE DYNAMICS CONTROL (VDC)>Rear ABS Wheel Speed Sensor>INSPECTION .

    Is the check result OK?

    Yes:  Go to  7.

    No:  Replace the ABS wheel speed sensor. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>FRONT ABS WHEEL SPEED SENSOR . Ref. to VEHICLE DYNAMICS CONTROL (VDC)>REAR ABS WHEEL SPEED SENSOR .

  7. CHECK VDCCM&H/U  .
    1. Connect all connectors.
    2. Using the Subaru Select Monitor, perform the clear memory. Ref. to COMMON (diag)>CLEAR MEMORY .
    3. Execute the inspection mode. Ref. to BRAKE CONTROL (DIAGNOSTICS)>INSPECTION MODE .
    4. Read the DTC using Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>Diagnostic Trouble Code (DTC) .

    Is the same DTC displayed?

    Yes:  Replace the VDCCM&H/U. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM&H/U) .

    No:  Go to  8.

  8. CHECK DETECTION OF OTHER DTCS FOR VDC  .

    Read the DTC using Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>Diagnostic Trouble Code (DTC) .

    Is any other DTC displayed?

    Yes:  Perform the diagnosis according to the DTC. Ref. to BRAKE CONTROL (DIAGNOSTICS)>Diagnostic Trouble Code (DTC)>LIST .

    No:  Currently, it is normal. There may have been a temporary poor contact in the harness and connector or a temporary noise interference.
