V-Belt TENSIONER ASSY
Install in the reverse order of removal.
NOTE:

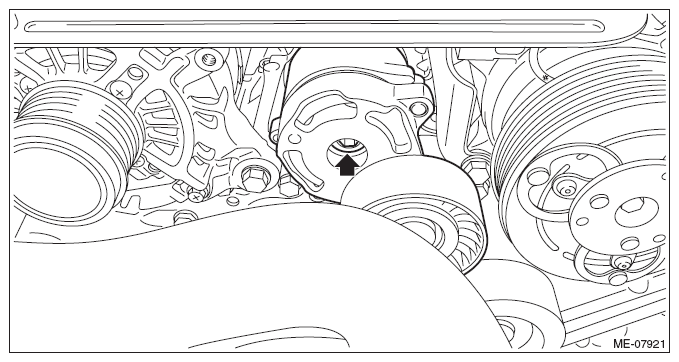

When installing the V-belt tensioner assembly, insert the protrusion of V-belt tensioner assembly into the hole for preventing rotation at the generator bracket.
 Courtesy of SUBARU OF AMERICA, INC.
|
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
 Courtesy of SUBARU OF AMERICA, INC.
|
