Cam Sprocket LH
NOTE:
When replacing a single part, perform the work with the engine assembly installed to body.
- Intake cam sprocket LH
- Remove the timing chain LH. Refer to MECHANICAL(W/O STI)>TIMING CHAIN ASSEMBLY>REMOVAL>TIMING CHAIN LH .

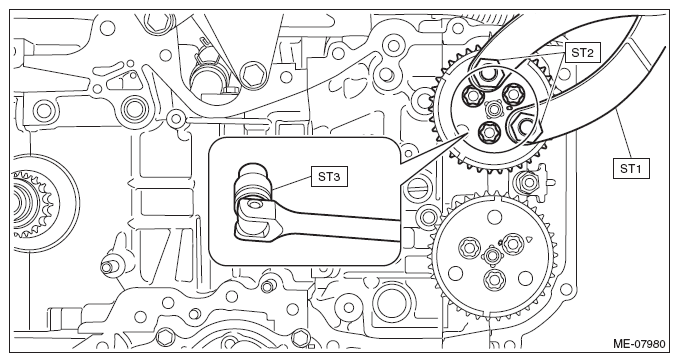

- Hold the intake cam sprocket LH using the ST1 and ST2, and remove the bolts using the ST3.CAUTION: Perform the operation carefully since the ST comes off easily.
ST1 18355AA000 PULLEY WRENCH ST2 18334AA020 PULLEY WRENCH PIN SET ST3 18270KA010 SOCKET - Remove the intake cam sprocket LH.
- Exhaust cam sprocket LH
- Remove the timing chain LH. Refer to MECHANICAL(W/O STI)>TIMING CHAIN ASSEMBLY>REMOVAL>TIMING CHAIN LH .

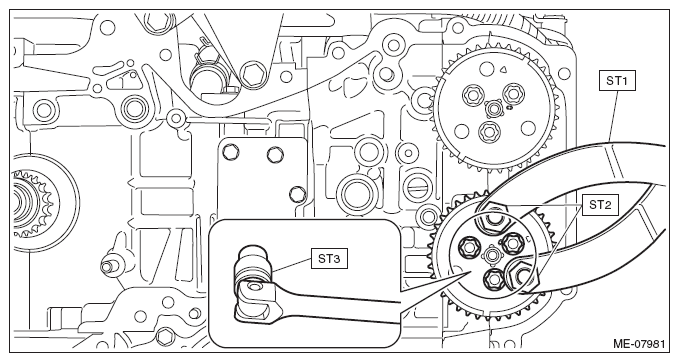

- Hold the exhaust cam sprocket LH using the ST1 and ST2, and remove the bolts using the ST3.CAUTION: Perform the operation carefully since the ST comes off easily.
ST1 18355AA000 PULLEY WRENCH ST2 18334AA020 PULLEY WRENCH PIN SET ST3 18270KA010 SOCKET - Remove the exhaust cam sprocket LH.
