Cam Sprocket LH
- Intake cam sprocket LH

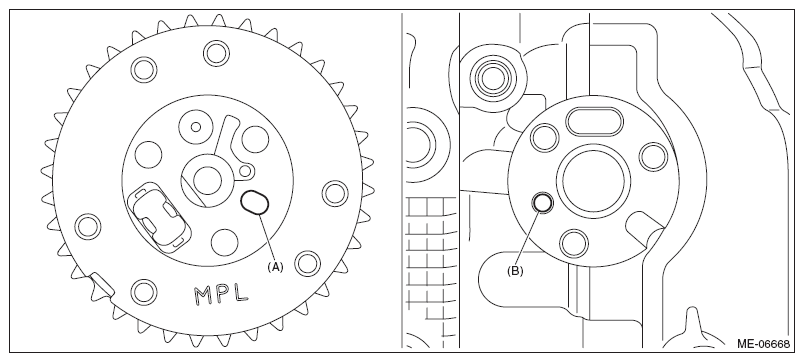

- Install the intake cam sprocket LH by aligning the knock hole (A) of intake cam sprocket LH and the knock pin (B) of intake camshaft LH.NOTE: Before installation, check that there is no foreign matter on the intake cam sprocket LH and intake camshaft LH.

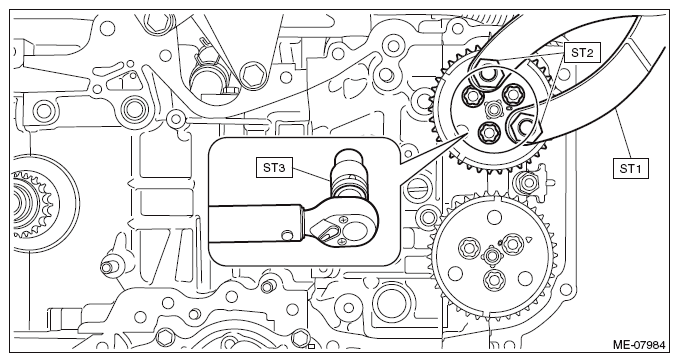

- Hold the intake cam sprocket LH using the ST1 and ST2, and install the bolts using the ST3.CAUTION: Perform the operation carefully since the ST comes off easily.NOTE: Apply engine oil to the bolt thread.
ST1 18355AA000 PULLEY WRENCH ST2 18334AA020 PULLEY WRENCH PIN SET ST3 18270KA010 SOCKET Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install timing chain LH. Refer to MECHANICAL(W/O STI)>TIMING CHAIN ASSEMBLY>INSTALLATION>TIMING CHAIN LH .
- Install the intake cam sprocket LH by aligning the knock hole (A) of intake cam sprocket LH and the knock pin (B) of intake camshaft LH.
- Exhaust cam sprocket LH

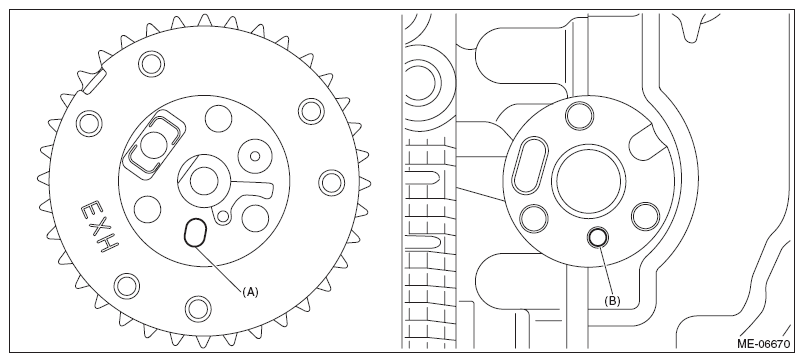

- Install the exhaust cam sprocket LH by aligning the knock hole (A) of exhaust cam sprocket LH and the knock pin (B) of exhaust camshaft LH.NOTE: Before installation, check that there is no foreign matter on the exhaust cam sprocket LH and exhaust camshaft LH.

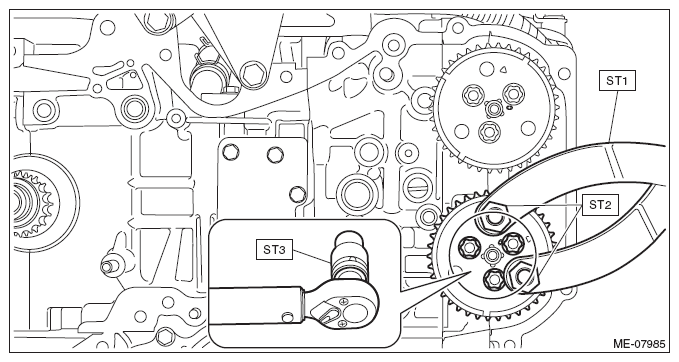

- Hold the exhaust cam sprocket LH using the ST1 and ST2, and install the bolts using the ST3.CAUTION: Perform the operation carefully since the ST comes off easily.NOTE: Apply engine oil to the bolt thread.
ST1 18355AA000 PULLEY WRENCH ST2 18334AA020 PULLEY WRENCH PIN SET ST3 18270KA010 SOCKET Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install timing chain LH. Refer to MECHANICAL(W/O STI)>TIMING CHAIN ASSEMBLY>INSTALLATION>TIMING CHAIN LH .
- Install the exhaust cam sprocket LH by aligning the knock hole (A) of exhaust cam sprocket LH and the knock pin (B) of exhaust camshaft LH.
