Engine Oil Cooler: Removal

CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.
  1. Remove the collector cover. Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>REMOVAL .
  2. Drain engine coolant. Refer to COOLING(W/O STI)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Lower the vehicle.
  4. Remove the engine oil filter. Refer to LUBRICATION(W/O STI)>ENGINE OIL FILTER>REMOVAL .

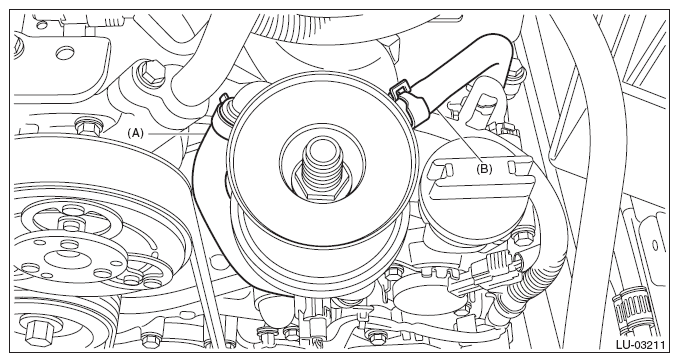

  5. Disconnect the front engine oil cooler hose A (A) and the side engine oil cooler hose A (B) from the engine oil cooler.
    G10267316Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the oil cooler connector and remove the engine oil cooler.
G09476561Courtesy of SUBARU OF AMERICA, INC.
