Front Engine Oil Cooler Pipe

  1. Remove the collector cover. Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>REMOVAL .
  2. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  3. Drain engine coolant. Refer to COOLING(W/O STI)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  4. Remove the center exhaust pipe. Refer to EXHAUST(W/O STI)>CENTER EXHAUST PIPE>REMOVAL .

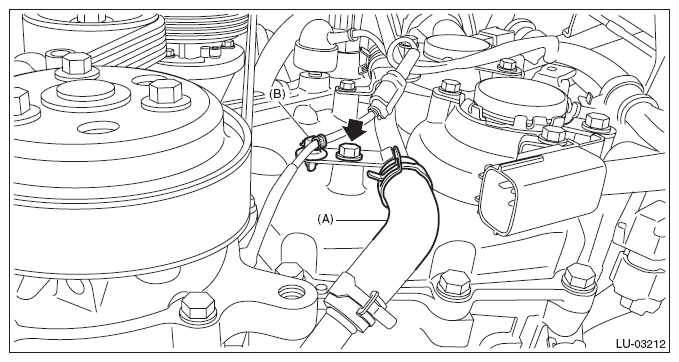

  5. Remove the clip (B) which holds the front engine oil cooler hose B (A) and the oil level switch harness from the front engine oil cooler pipe. Remove the bolt which secures the front engine oil cooler pipe to the chain cover.
    G10267318Courtesy of SUBARU OF AMERICA, INC.
  6. Lower the vehicle.

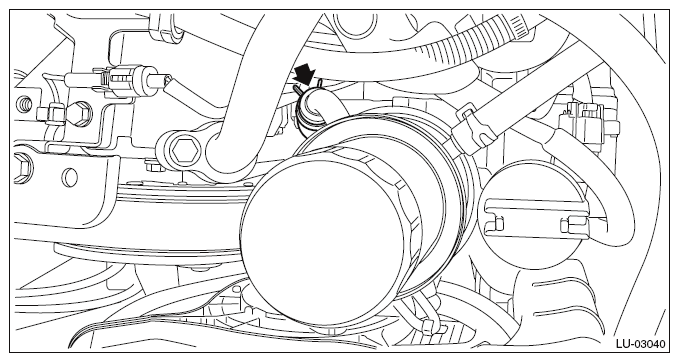

  7. Disconnect the front engine oil cooler hose A from the engine oil cooler.
    G09476564Courtesy of SUBARU OF AMERICA, INC.

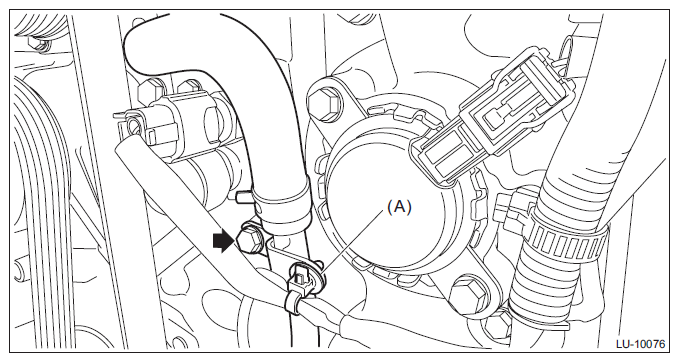

  8. Remove the clip (A) holding the engine oil temperature sensor harness from the front engine oil cooler pipe.
  9. Remove the bolt which secures the front engine oil cooler pipe to the chain cover. Remove the front engine oil cooler pipe together with the front engine oil cooler hose A.
    G11576827Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the front engine oil cooler hose A from the front engine oil cooler pipe.
