Side Engine Oil Cooler Pipe

Install in the reverse order of removal.

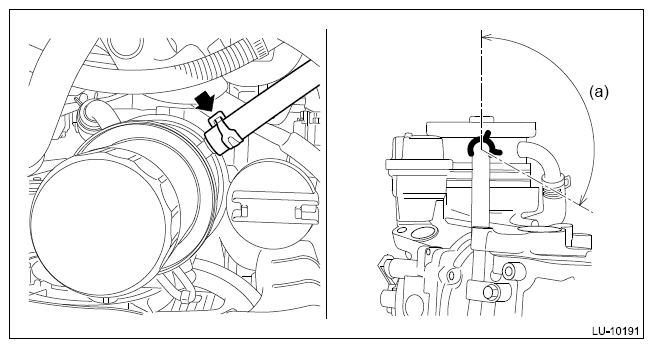

NOTE: When connecting the side engine oil cooler hose A to the engine oil cooler, the direction of the clip claw should be matched within the position (a) shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
