Radiator Sub Fan and Fan Motor: Removal

  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Remove the air intake duct. Refer to INTAKE (INDUCTION) (W/O STI)>AIR INTAKE DUCT>REMOVAL .

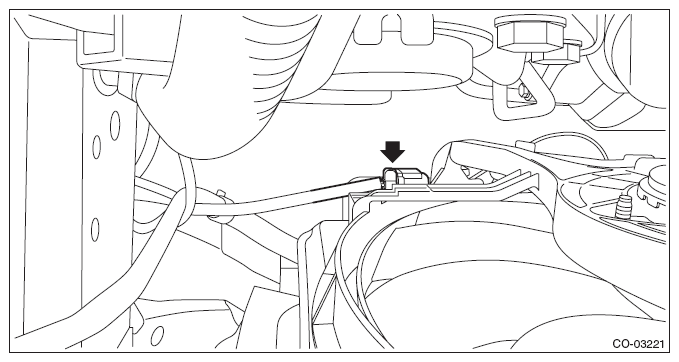

  3. Disconnect the connector from the sub fan motor.
    G09480823Courtesy of SUBARU OF AMERICA, INC.

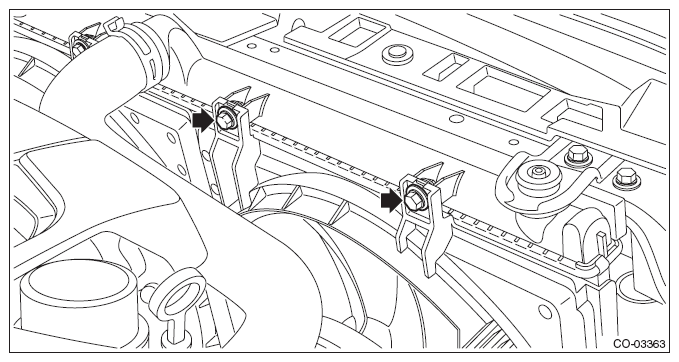

  4. Remove the bolts which secure the radiator sub fan motor assembly onto the radiator.
    G10267262Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the radiator sub fan motor assembly from the vehicle.
