EyeSight System: Wiring Diagram

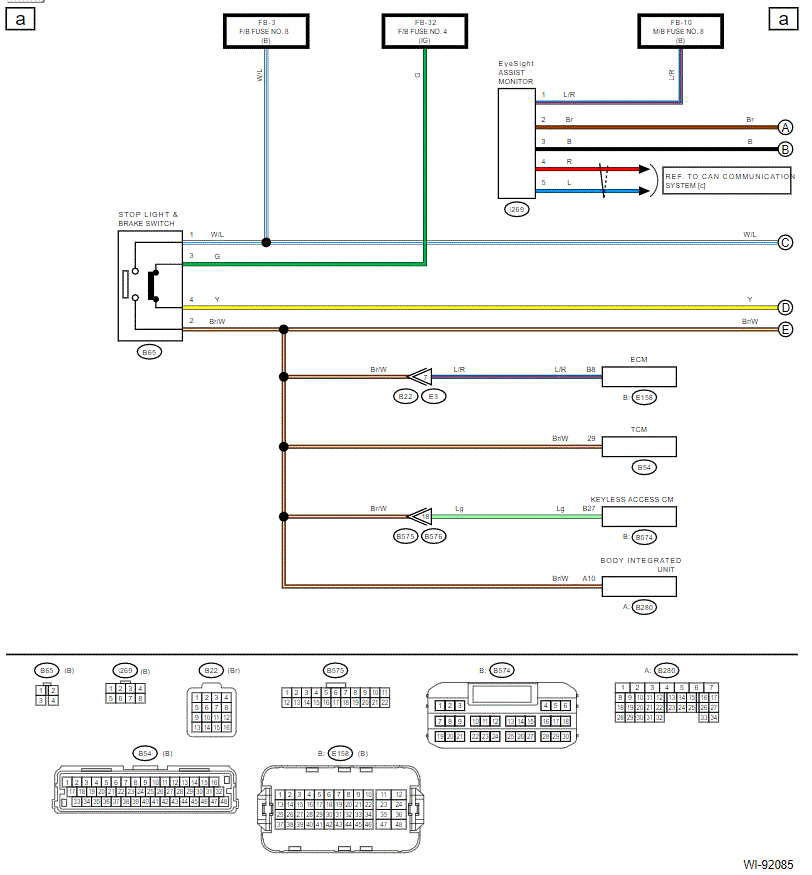

G00603358Courtesy of SUBARU OF AMERICA, INC.

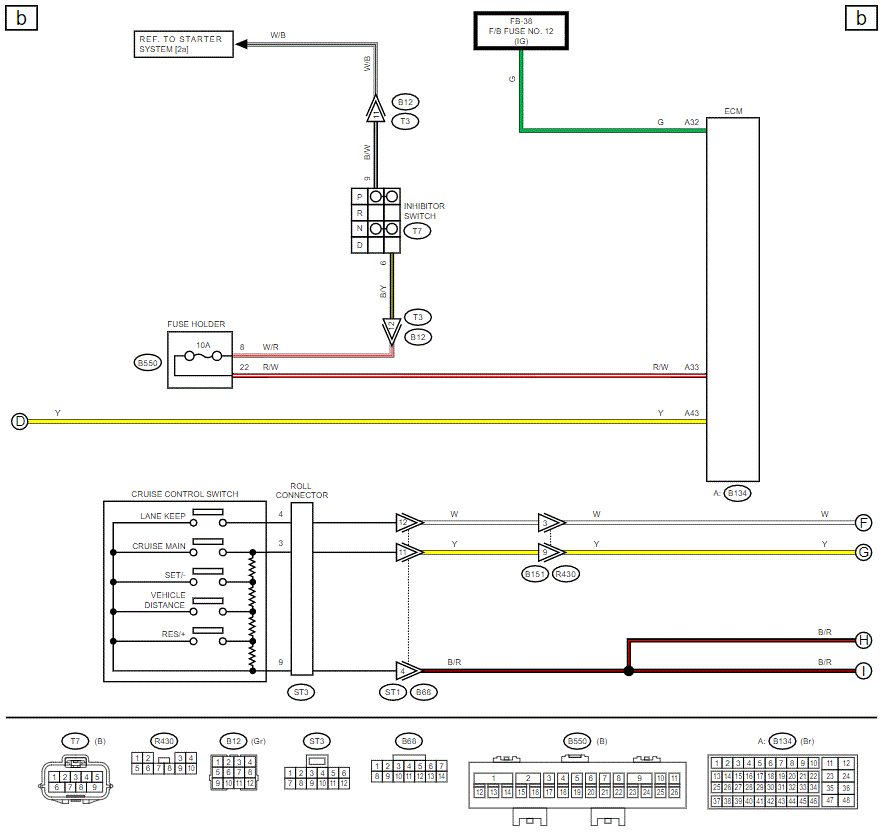

G00603359Courtesy of SUBARU OF AMERICA, INC.

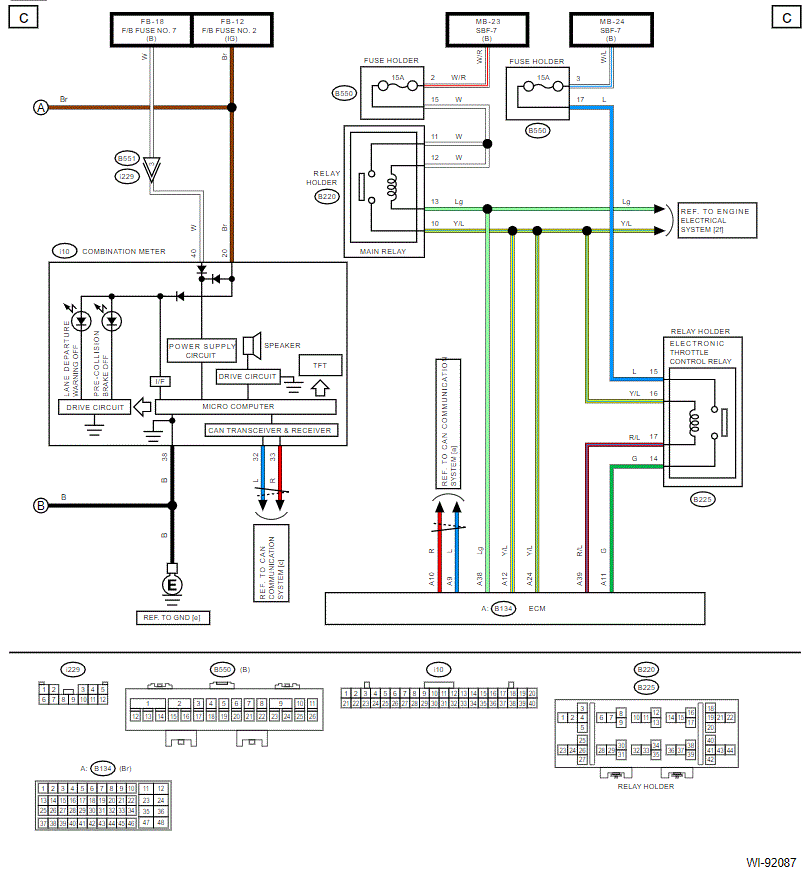

G00603360Courtesy of SUBARU OF AMERICA, INC.

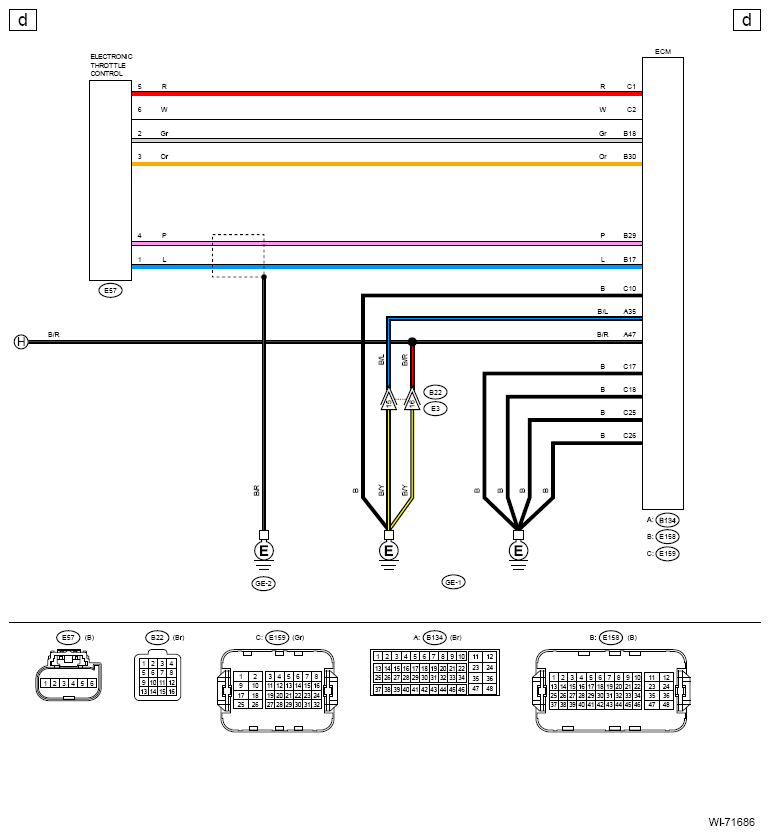

G13649817Courtesy of SUBARU OF AMERICA, INC.

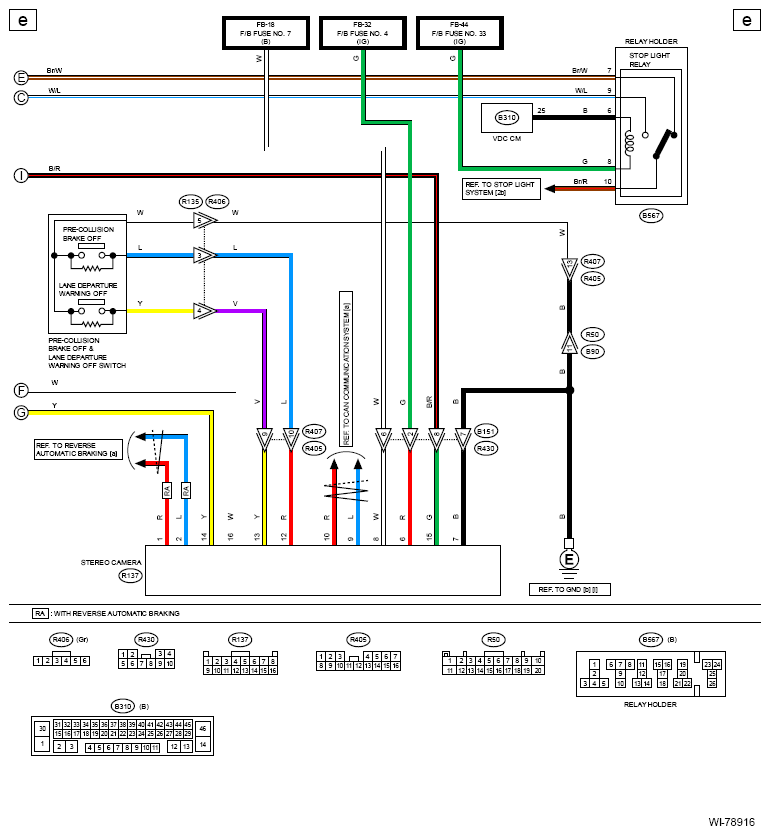

G13263608Courtesy of SUBARU OF AMERICA, INC.
