Airbag System: Wiring Diagram

G00603328Courtesy of SUBARU OF AMERICA, INC.
G00603329Courtesy of SUBARU OF AMERICA, INC.

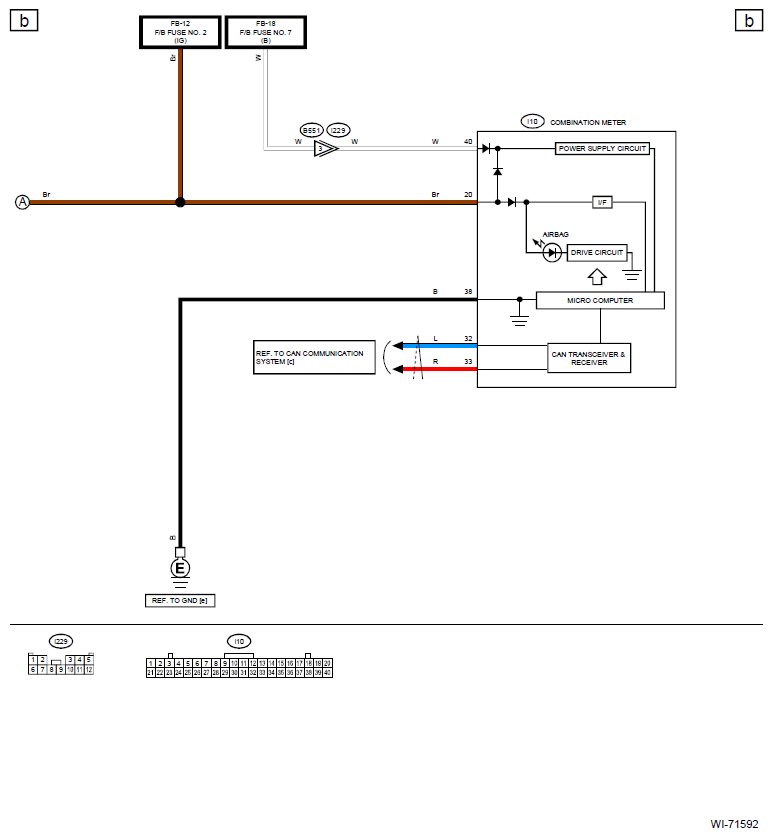

G12456292Courtesy of SUBARU OF AMERICA, INC.

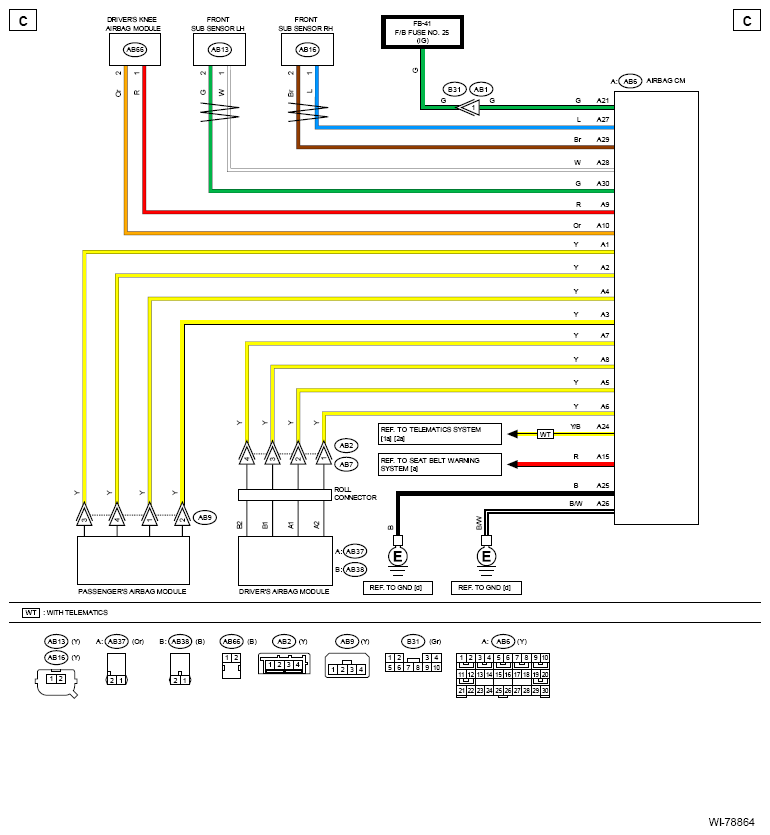

G13263459Courtesy of SUBARU OF AMERICA, INC.
G12456294Courtesy of SUBARU OF AMERICA, INC.
G12456295Courtesy of SUBARU OF AMERICA, INC.
