Rear Hub Unit Bearing: Removal

1. Lift up the vehicle, and then remove the rear wheels.
2. Remove the axle nut.
   CAUTION: Do not loosen the axle nut while the rear axle is loaded. Doing so may damage the hub unit bearing.
   1. Lift the crimped section of axle nut.
   2. Remove the axle nut using a socket wrench while depressing the brake pedal.

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the rear ABS wheel speed sensor.
   1. Remove the bolts, and remove the rear ABS wheel speed sensor.
   2. Remove the rear ABS wheel speed sensor harness from the upper arm.
   CAUTION:

   • Be careful not to damage the sensor.
   • Do not apply excessive force to the sensor harness.

   Courtesy of SUBARU OF AMERICA, INC.

4. Remove the rear disc brake assembly and rear disc rotor. Refer to BRAKE>REAR DISC ROTOR>REMOVAL .

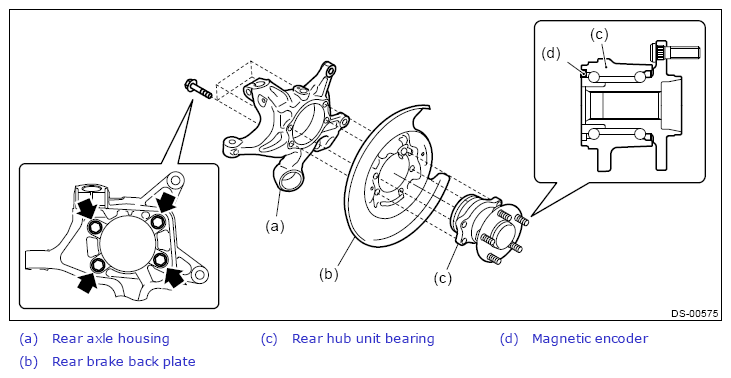

5. Remove the rear hub unit bearing.

Courtesy of SUBARU OF AMERICA, INC.

Preparation tool:

ST1: AXLE SHAFT PULLER (926470000)

ST2: AXLE SHAFT PULLER PLATE (28099PA110)

Courtesy of SUBARU OF AMERICA, INC.
