Brake Vacuum Pump: Removal

NOTE: Only other models than STI are equipped with the brake vacuum pump.
  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Remove the collector cover. Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>REMOVAL .
  3. Remove the vacuum pump assembly.
    1. Disconnect the connectors of the vacuum pump assembly.
    2. Remove the vacuum hose COMPL.

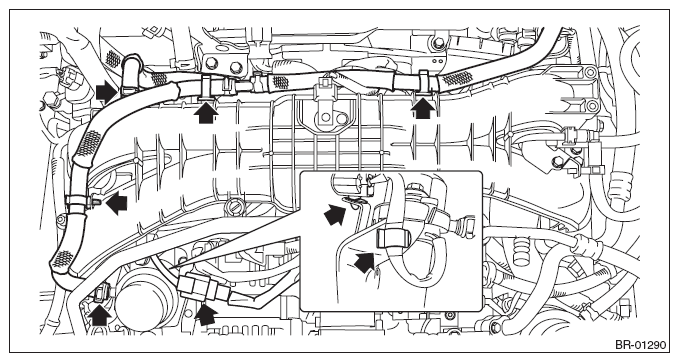

      G10270031Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the bolts, then remove the vacuum pump assembly.

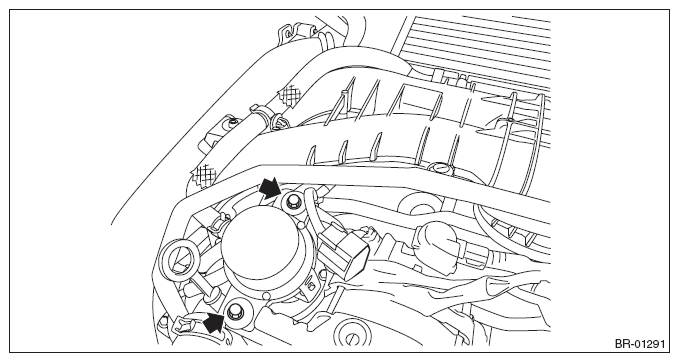

    G10270032Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts, and then remove the bracket - generator.

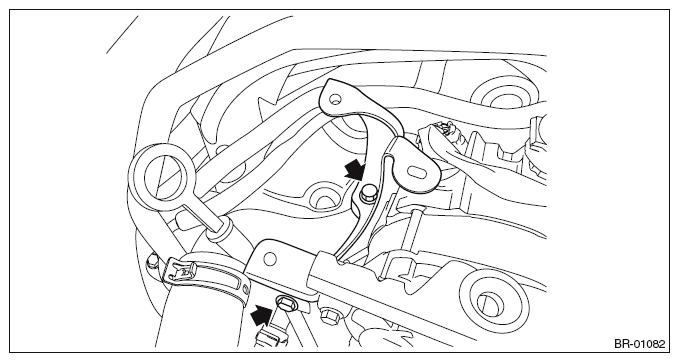

G09483586Courtesy of SUBARU OF AMERICA, INC.
