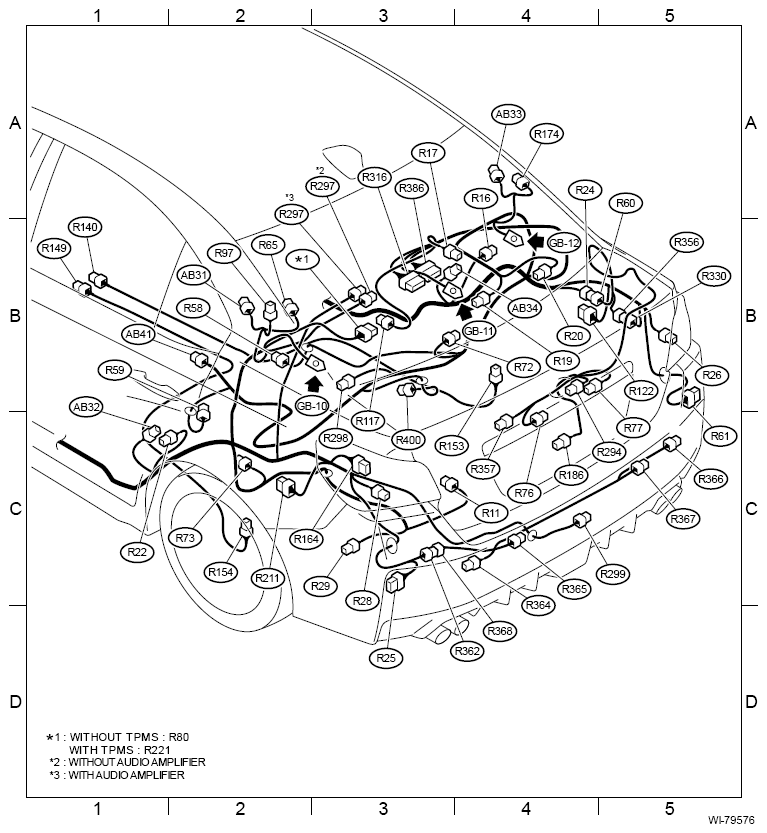

| AB31 |
2 |
B |
B-2 |
|
Curtain airbag module LH |
| AB32 |
4 |
Y |
C-1 |
|
Curtain airbag sensor LH |
| AB33 |
2 |
B |
A-4 |
|
Curtain airbag module RH |
| AB34 |
4 |
Y |
B-4 |
|
Curtain airbag sensor RH |
| AB41 |
2 |
Y |
B-2 |
|
Satellite safing sensor |
| R11 |
2 |
B |
C-3 |
|
Rear differential oil temperature sensor |
| R16 |
3 |
|
B-4 |
|
Rear door switch RH |
| R17 |
1 |
B |
B-4 |
|
Amplifier bracket ground |
| R19 |
2 |
|
B-4 |
|
High-mounted stop light |
| R20 |
2 |
B |
B-4 |
|
Trunk room light |
| R22 |
3 |
|
C-2 |
|
Rear door switch LH |
| R24 |
8 |
|
B-4 |
R60 |
Trunk lid cord |
| R25 |
10 |
B |
C-3 |
|
Radar sensor LH (master) |
| R26 |
6 |
|
B-5 |
|
Rear combination light RH |
| R28 |
6 |
|
C-3 |
|
Rear combination light LH |
| R29 |
3 |
B |
C-3 |
|
Rear vehicle height sensor |
| R58 |
6 |
Gr |
B-2 |
|
Fuel pump assembly (engine type EJ) |
| 4 |
Gr |
B-2 |
|
Fuel pump assembly (engine type FA) |
| R59 |
2 |
|
B-2 |
|
Fuel sub level sensor |
| R60 |
8 |
|
B-5 |
R24 |
Rear wiring harness RH |
| R61 |
10 |
B |
B-5 |
|
Radar sensor RH (slave) |
| R65 |
1 |
B |
B-2 |
|
Rear defogger (-) |
| R72 |
2 |
Gr |
B-3 |
|
Rear ABS wheel speed sensor RH |
| R73 |
2 |
Gr |
C-2 |
|
Rear ABS wheel speed sensor LH |
| R76 |
2 |
|
C-4 |
|
License plate light LH |
| R77 |
2 |
|
B-4 |
|
License plate light RH |
| R80 |
8 |
|
B-3 |
|
Keyless entry CONTROL MODULE (without push button start) |
| R97 |
1 |
|
B-2 |
AN8 |
Antenna cord |
| R117 |
4 |
|
B-3 |
|
Woofer |
| R122 |
6 |
|
B-4 |
|
Fuel pump CU (engine type FA) |
| 10 |
Gr |
B-4 |
|
Fuel pump CU (engine type EJ) |
| R140 |
2 |
B |
B-1 |
B35 |
Bulkhead wiring harness |
| R149 |
2 |
|
B-1 |
B33 |
| R153 |
2 |
B |
B-4 |
|
Rear brake caliper RH |
| R154 |
2 |
B |
C-2 |
|
Rear brake caliper LH |
| R164 |
10 |
G |
C-3 |
|
J/C |
| R174 |
1 |
B |
A-4 |
|
Rear defogger (+) |
| R186 |
3 |
|
C-4 |
|
Trunk lid lock actuator & switch |
| R211 |
12 |
|
C-2 |
|
TPMS CONTROL MODULE |
| R221 |
12 |
|
B-3 |
|
TPMS & keyless entry CONTROL MODULE |
| R294 |
2 |
Br |
B-4 |
|
Trunk opener button |
| R297 |
3 |
|
B-3 |
|
Keyless access interior antenna (rear) |
| R298 |
3 |
|
B-3 |
|
Keyless access interior antenna (center) |
| R299 |
2 |
Gr |
C-4 |
|
Keyless access exterior antenna (rear) |
| R316 |
28 |
B |
B-3 |
|
Audio amplifier |
| R330 |
4 |
|
B-5 |
R356 |
Trunk lid cord |
| R356 |
4 |
|
B-5 |
R330 |
Rear wiring harness RH |
| R357 |
4 |
|
C-4 |
|
Rearview camera |
| R362 |
8 |
Gr |
C-3 |
R368 |
Sonar sensor cord |
| R364 |
2 |
B |
C-4 |
|
Sonar sensor (Left corner) |
| R365 |
2 |
B |
C-4 |
|
Sonar sensor (Left inner) |
| R366 |
2 |
B |
C-5 |
|
Sonar sensor (Right corner) |
| R367 |
2 |
B |
C-5 |
|
Sonar sensor (Right inner) |
| R368 |
8 |
Gr |
C-3 |
R362 |
Rear wiring harness |
| R386 |
28 |
|
B-3 |
|
Audio amplifier |
| R400 |
8 |
|
B-3 |
|
Leak check valve assy |
