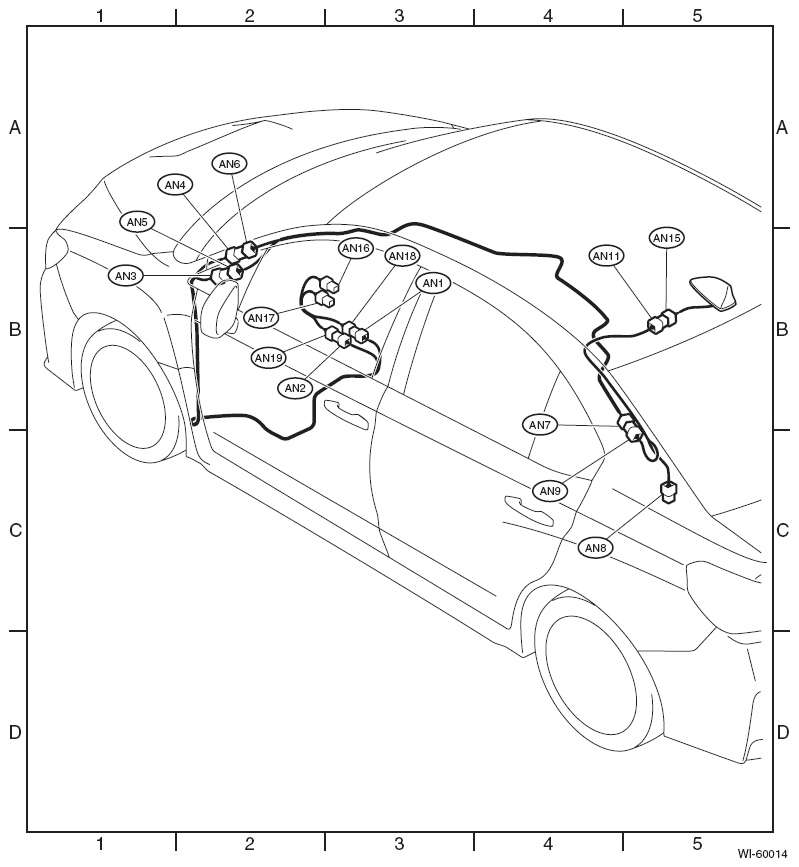

Without Telematics
| Connector | Connecting to | ||||||
|---|---|---|---|---|---|---|---|
| No. | Pole | Color | Area | No. | DESCRIPTION | ||
| AN1 | 3 | Gr | B-3 | AN18 | Antenna cord | ||
| AN2 | 1 | G | B-3 | AN19 | |||
| AN3 | 3 | (1) | B-2 | AN5 | |||
| AN4 | 1 | G | B-2 | AN6 | |||
| AN5 | 3 | (1) | B-2 | AN3 | |||
| AN6 | 1 | G | B-2 | AN4 | |||
| AN7 | 3 | (1) | B-5 | AN9 | |||
| AN8 | 1 | (1) | C-5 | R97 | Rear wiring harness LH | ||
| AN9 | 3 | (1) | C-5 | AN7 | Antenna cord | ||
| AN11 | 3 | Gr | B-5 | AN15 | Antenna | ||
| AN15 | 3 | Gr | B-5 | AN11 | Antenna cord | ||
| AN16 | 3 | (1) | B-3 | Audio (without navigation) | |||
| 3 | (1) | B-3 | Navigation unit (with navigation) | ||||
| AN17 | 1 | L | B-2 | Audio (without navigation) | |||
| 1 | L | B-2 | Navigation unit (with navigation) | ||||
| AN18 | 2 | Gr | B-3 | AN1 | Antenna cord | ||
| AN19 | 1 | G | B-3 | AN2 | |||
|
|||||||
