Reverse Automatic Braking: Wiring Diagram

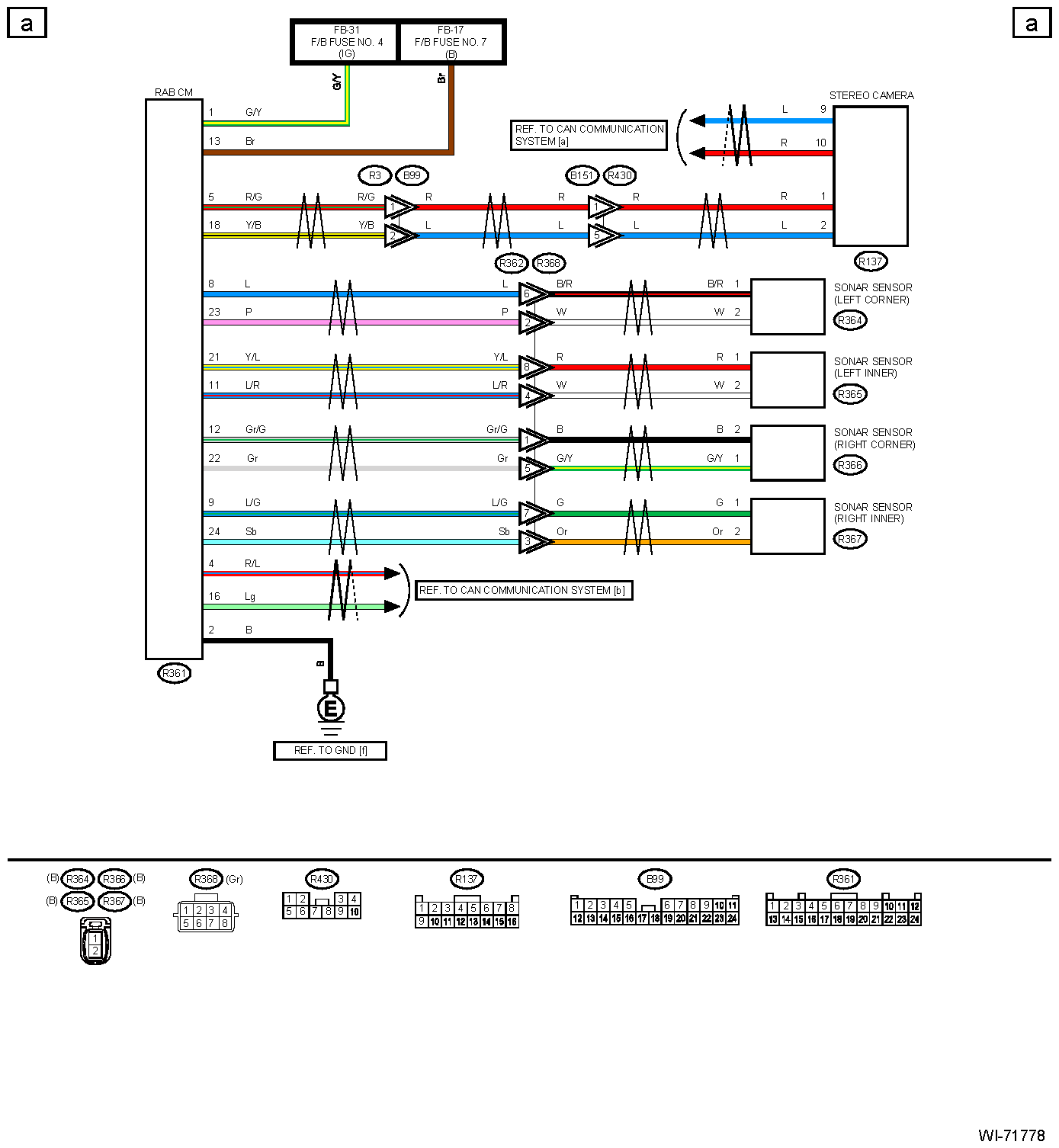

G12456546

Courtesy of SUBARU OF AMERICA, INC.

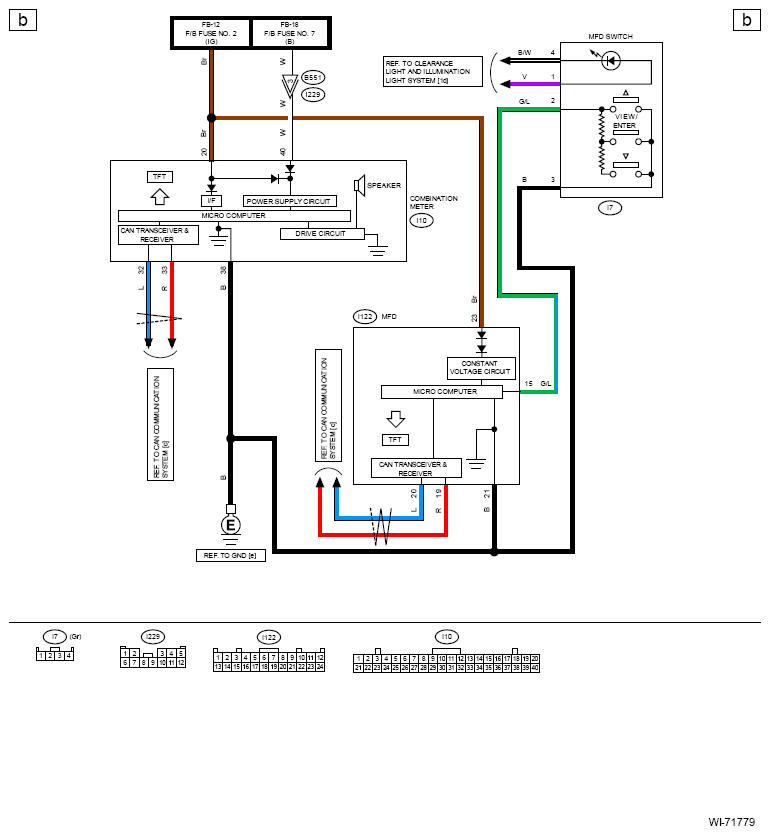

G13649922

Courtesy of SUBARU OF AMERICA, INC.
