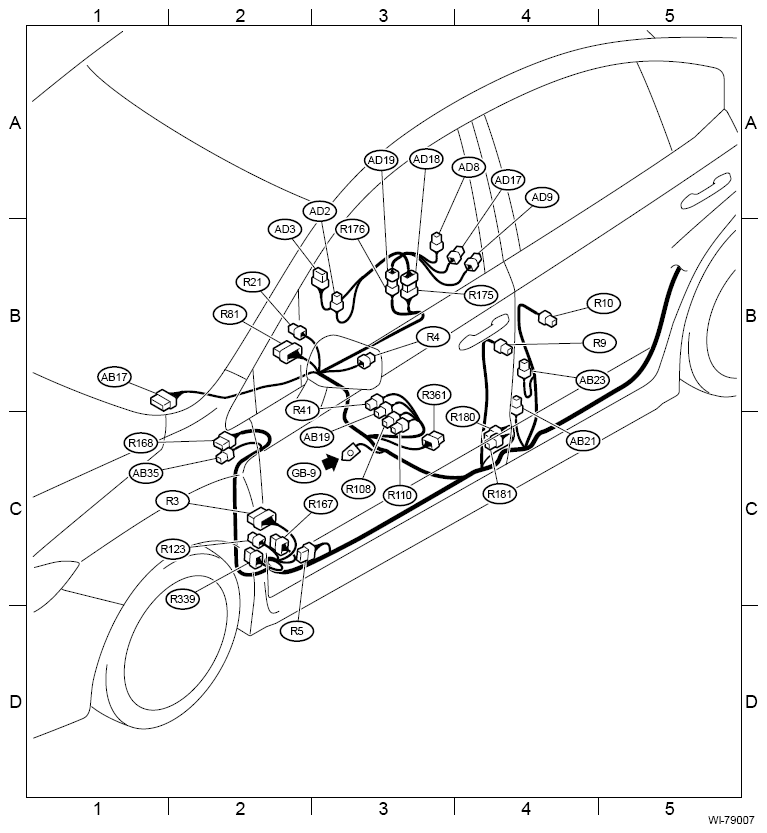

| AB17 |
24 |
Y |
B-1 |
|
Airbag CONTROL MODULE |
| AB19 |
4 |
Y |
B-3 |
|
Side airbag module LH |
| AB21 |
2 |
B |
B-4 |
|
Pretensioner LH |
| AB23 |
4 |
Y |
B-4 |
|
Side airbag sensor LH |
| AB35 |
2 |
B |
C-2 |
|
F/B |
| AD2 |
4 |
Gr |
B-3 |
|
AVH switch |
| AD3 |
12 |
|
B-3 |
|
EPB control switch |
| AD8 |
8 |
|
B-3 |
|
Seat heater switch |
| AD9 |
2 |
|
B-4 |
|
Rear accessory power supply socket (console) |
| AD17 |
8 |
|
B-4 |
|
AUX input terminal |
| AD18 |
18 |
|
B-3 |
R175 |
Rear wiring harness LH |
| AD19 |
6 |
|
B-3 |
R176 |
Rear wiring harness LH |
| R3 |
24 |
|
C-2 |
B99 |
Bulkhead wiring harness |
| R4 |
1 |
B |
B-3 |
|
Parking brake switch |
| R5 |
10 |
|
C-2 |
B92 |
Bulkhead wiring harness |
| R9 |
3 |
|
B-4 |
|
Front door switch LH |
| R10 |
8 |
|
B-4 |
D22 |
Rear door cord LH (without audio amplifier) |
| R21 |
4 |
|
B-2 |
R18 |
Rear wiring harness RH |
| R41 |
4 |
|
B-3 |
|
Seat heater LH |
| R81 |
22 |
|
B-2 |
R82 |
Rear wiring harness RH |
| R108 |
2 |
|
C-3 |
|
Seat belt switch LH |
| R110 |
2 |
B |
C-3 |
R205 |
Power seat LH |
| R123 |
2 |
|
C-2 |
AB62 |
Airbag wiring harness |
| R167 |
20 |
|
C-2 |
i102 |
Instrument panel wiring harness |
| R168 |
20 |
|
C-2 |
|
F/B |
| R175 |
18 |
|
B-3 |
AD18 |
Adapter cord LH |
| R176 |
6 |
|
B-3 |
AD19 |
Adapter cord LH |
| R180 |
4 |
|
C-4 |
|
CAN J1/C |
| R181 |
4 |
|
C-4 |
|
CAN J/C |
| R361 |
24 |
|
C-3 |
|
RAB CONTROL MODULE |
| R339 |
20 |
|
C-2 |
i2 |
Instrument panel wiring harness |
