7 Inch Display (Without Audio Amplifier, Without Telematics)

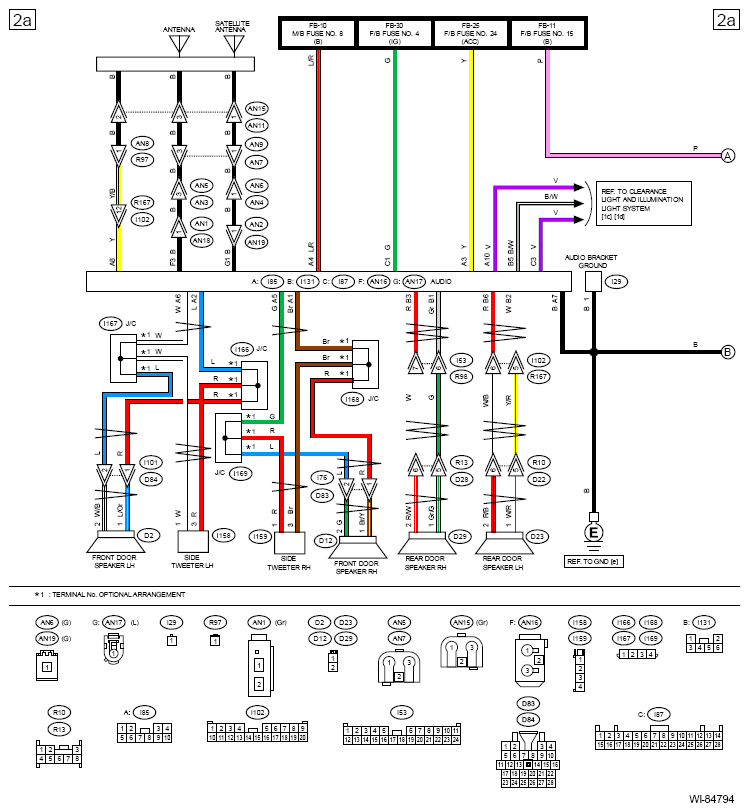

G13649681Courtesy of SUBARU OF AMERICA, INC.

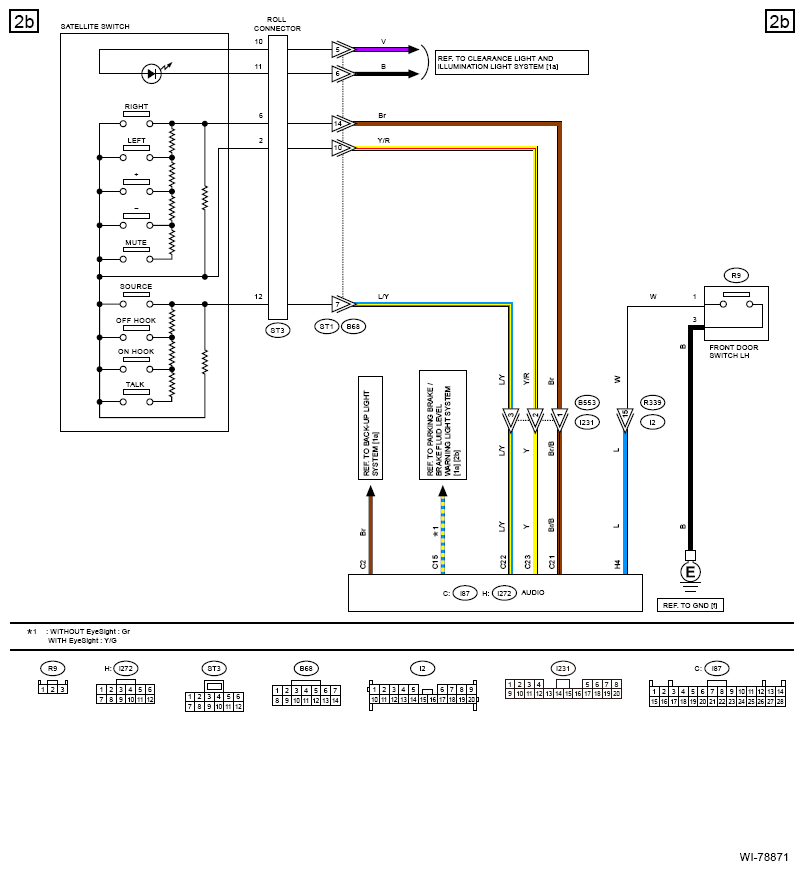

G13263472Courtesy of SUBARU OF AMERICA, INC.

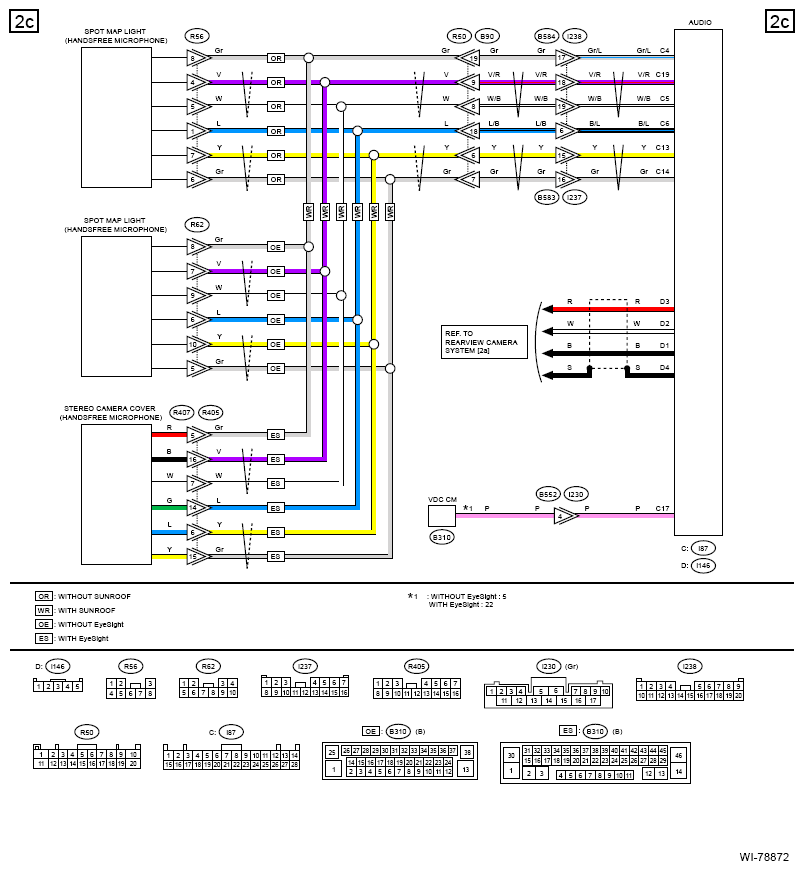

G13263473Courtesy of SUBARU OF AMERICA, INC.

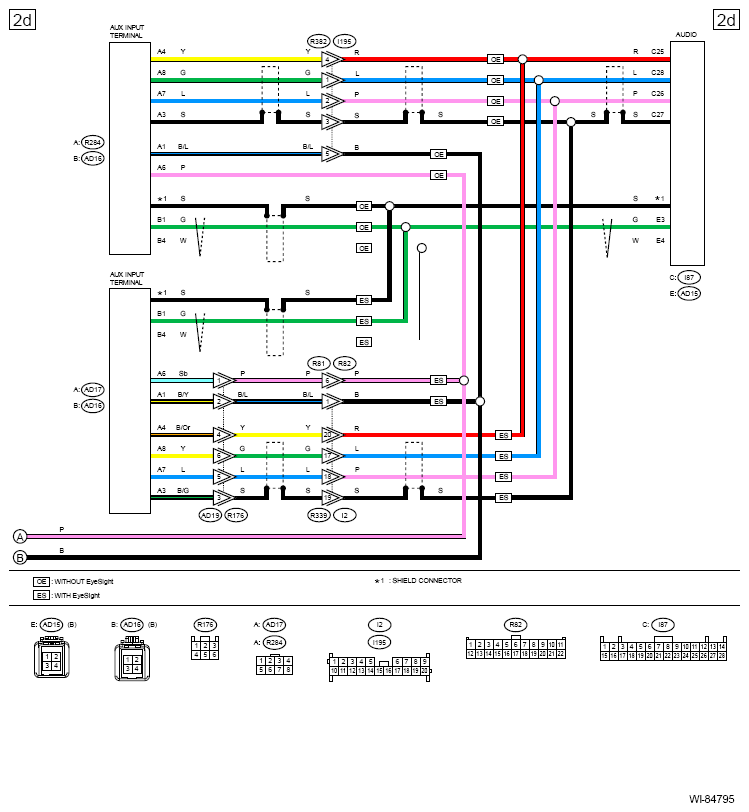

G13649684Courtesy of SUBARU OF AMERICA, INC.
