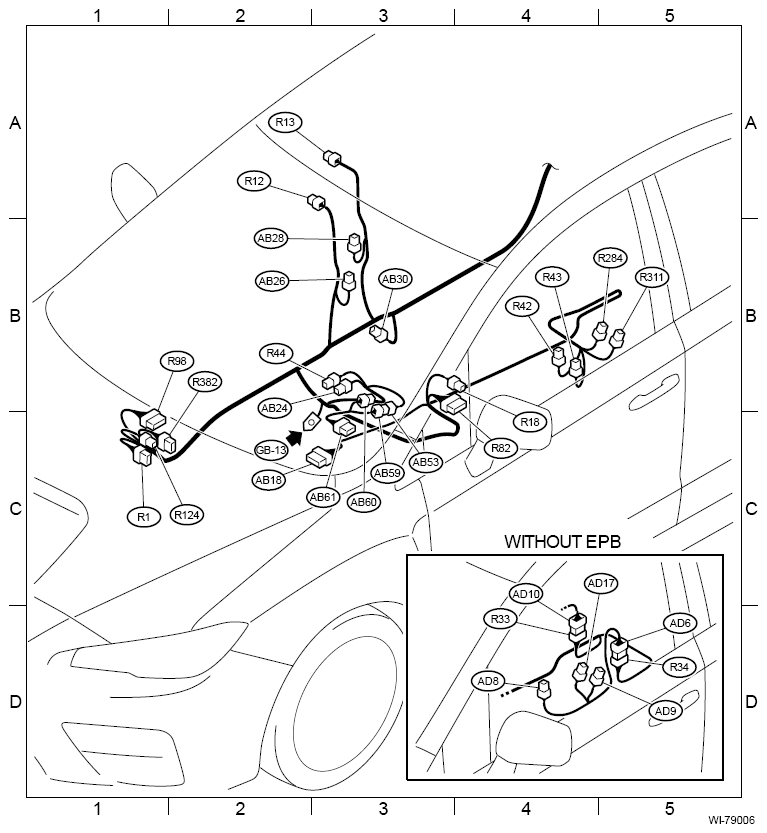

| AB18 |
24 |
Y |
C-3 |
|
Airbag CONTROL MODULE |
| AB24 |
4 |
Y |
B-3 |
|
Side airbag module RH |
| AB26 |
2 |
B |
B-3 |
|
Pretensioner RH |
| AB28 |
4 |
Y |
B-3 |
|
Side airbag sensor RH |
| AB30 |
2 |
B |
B-3 |
|
Lap seat belt pretensioner RH |
| AB53 |
3 |
Gr |
B-3 |
AB59 |
Occupant detection wiring harness |
| AB59 |
3 |
Br |
B-3 |
AB53 |
Rear wiring harness |
| AB60 |
2 |
Y |
B-3 |
|
Buckle switch |
| AB61 |
10 |
B |
C-3 |
|
Occupant detection CONTROL MODULE |
| AD6 |
20 |
|
D-5 |
R34 |
Rear wiring harness LH |
| AD8 |
8 |
|
D-4 |
|
Seat heater switch |
| AD9 |
2 |
|
D-4 |
|
Rear accessory power supply socket (console) |
| AD10 |
10 |
|
D-4 |
R33 |
Rear wiring harness LH |
| AD17 |
8 |
|
D-4 |
|
AUX input terminal |
| R1 |
20 |
|
C-1 |
B97 |
Bulkhead wiring harness |
| R12 |
3 |
|
A-3 |
|
Front door switch RH |
| R13 |
8 |
|
A-3 |
D28 |
Rear door cord RH |
| R18 |
4 |
|
B-4 |
R21 |
Rear wiring harness LH |
| R33 |
10 |
|
D-4 |
AD10 |
Multi select switch |
| R34 |
20 |
|
D-5 |
AD6 |
Adapter cord LH |
| R42 |
4 |
|
B-4 |
|
Seat heater switch RH |
| R43 |
4 |
L |
B-4 |
|
Seat heater switch LH (without SI-DRIVE) |
| R44 |
4 |
|
B-3 |
|
Seat heater RH |
| R82 |
22 |
|
B-4 |
R81 |
Rear wiring harness LH |
| R98 |
24 |
|
C-1 |
i53 |
Instrument panel wiring harness |
| R124 |
2 |
|
C-1 |
AB63 |
Airbag wiring harness |
| R284 |
8 |
|
B-5 |
|
AUX input terminal |
| R311 |
2 |
|
B-5 |
|
Rear accessory power supply socket (console) |
| R382 |
20 |
|
C-1 |
i195 |
Instrument panel wiring harness |
