Parking Brake Harness

  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Remove the console box assembly. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .

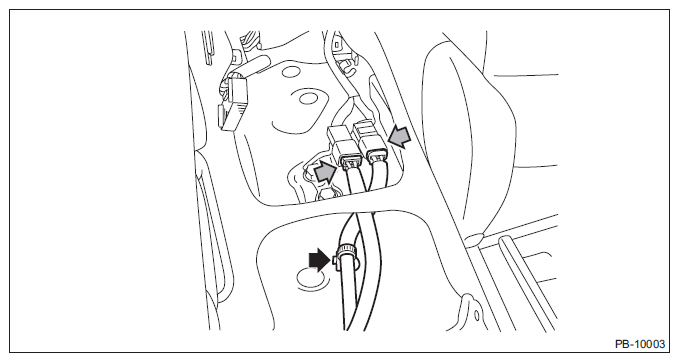

  3. Remove the connector and clip.
    G11579660Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the rear seat cushion assembly. Refer to SEATS>REAR SEAT>REMOVAL .
  5. Lift up the vehicle, and then remove the rear wheels.
  6. Remove the bolt and nuts and remove the fuel tank protector.
    G10264902Courtesy of SUBARU OF AMERICA, INC.

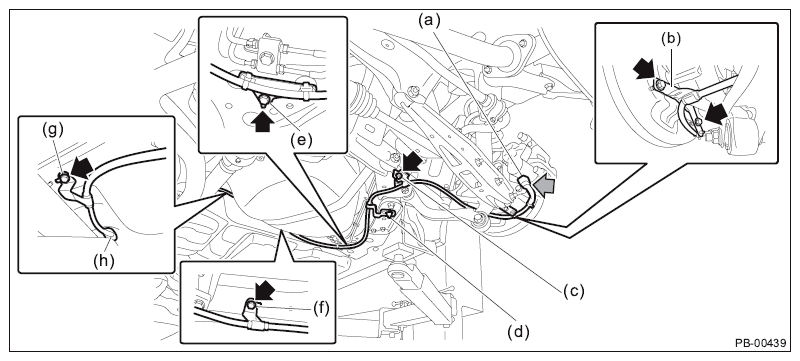

  7. Remove the electronic parking brake harness.
    1. Disconnect the connector (a).
    2. Remove the harness clamp (b) from the back plate - rear brake.
    3. Remove the harness clamp (c) from the lateral link.
    4. Remove the harness clamp (d) from the support - sub frame.
    5. Remove the harness clamps (e), (f) and (g) from the rear floor.
    6. Remove the grommet (h) from the rear floor.
G10297917Courtesy of SUBARU OF AMERICA, INC.
