Rear Brake Hose

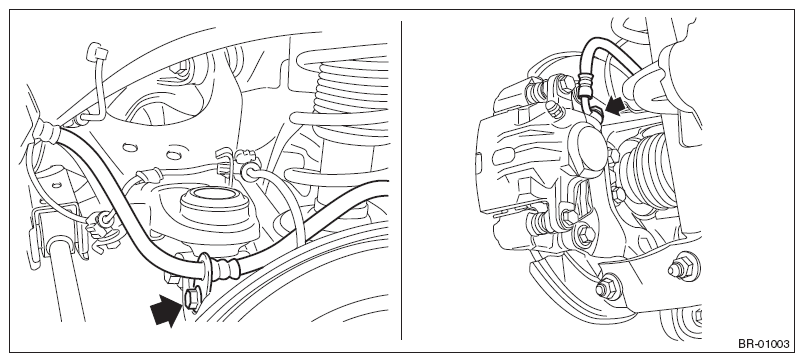

  1. Remove the brake hose bracket bolt and union bolt.
    G08314833Courtesy of SUBARU OF AMERICA, INC.

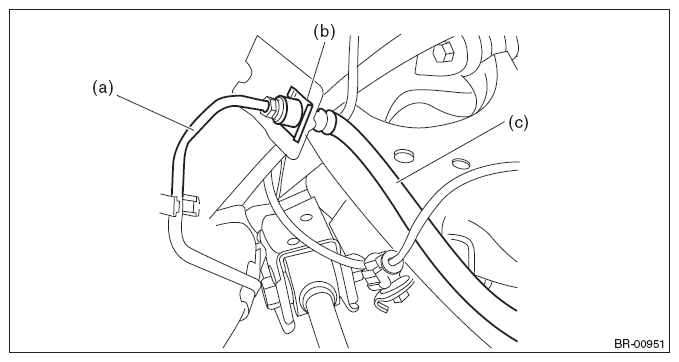

  2. Disconnect the brake pipe (a).

    Preparation tool:

    Flare nut wrench

  3. Remove the brake hose clamp (b), and remove the rear brake hose (c).
G08314870Courtesy of SUBARU OF AMERICA, INC.
