Rear Sealing Cover: Removal

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. Refer to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .
  3. Remove the sealing cover - rear door.
    CAUTION:
    • Carefully remove the butyl tape. Excessive force will easily break the cover.
    • If the sealing cover - rear door gets broken, replace it with a new part.
    • Be careful not to allow the butyl tape to contact any trims and seats because the butyl tape, which has a strong adhesive force, is difficult to remove once it adhered.

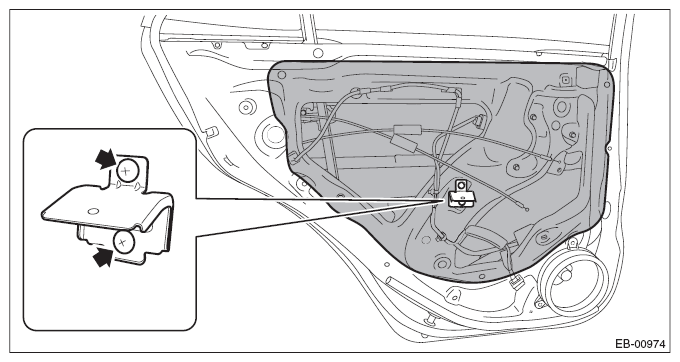

    1. Remove the screw to remove the bracket - door trim rear.
    2. Disconnect connectors.
    3. Carefully remove the butyl tape to remove the sealing cover - rear door.
      G10271320Courtesy of SUBARU OF AMERICA, INC.
