NOZZLE - WIPER ARM WASHER & HOSE (MODEL WITH EyeSight)

CAUTION: Do not remove the nozzle - wiper arm washer from the arm assembly - windshield wiper assistor.
If nozzle replacement is required, replace the arm assembly - windshield wiper assistor as a unit.
  1. Remove the arm assembly - windshield wiper. Refer to WIPER AND WASHER SYSTEMS>FRONT WIPER ARM>REMOVAL .
  2. Remove the cowl panel - side and the cowl panel assembly. Refer to EXTERIOR/INTERIOR TRIM>COWL PANEL>REMOVAL .
    CAUTION: Before removing the cowl panel, use an air blower and nylon brush to sweep gravel from the lower area of the front side of the glass.

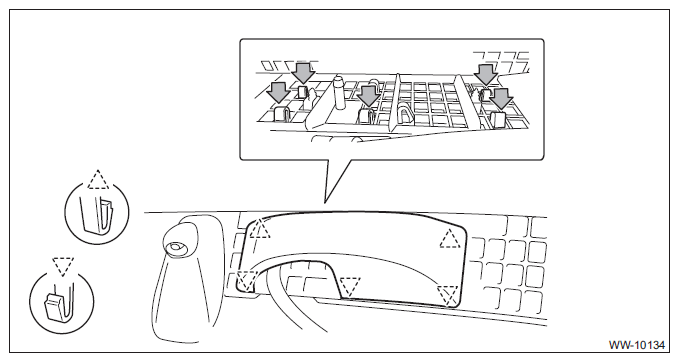

  3. Release the claws, and remove the cover - joint from cowl panel assembly.
    G11582583Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the hose - wiper arm washer.
    G11582584Courtesy of SUBARU OF AMERICA, INC.
    G11582585Courtesy of SUBARU OF AMERICA, INC.
