NOZZLE - WIPER ARM WASHER (MODEL WITH EyeSight)
CAUTION:
Check and adjust the spray position of the nozzle - wiper arm at the position where the wiper arm stops.
- Turn the combination switch (wiper) to OFF position.

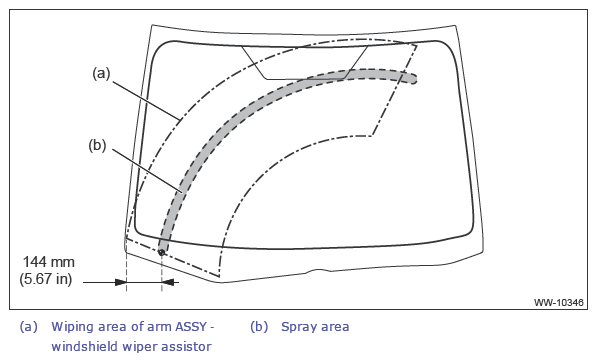

- While the vehicle is stopped, check that the washer spray position is as shown in the figure.
- After inspection, if the spray position is really out of the specified range, replace with a new arm assembly - windshield wiper assistor.
