Rear Quarter Trim: Removal

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • Airbag system satellite safing sensor is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the clips, and remove the trim panel - rear pillar UPR.
    G13263189Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the rear seat cushion assembly. Refer to SEATS>REAR SEAT>REMOVAL .
  4. Release the clips and claws, and then remove the cover side sill - rear INN.
    CAUTION: Do not pull with excessive force. Doing so may damage the claws of the cover side sill - rear INN.
    G13649519Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the trim panel - rear pillar LWR.
    1. Remove the clips, and turn over the trim panel - trunk side.
    2. Remove the clips, and remove the trim panel - rear pillar LWR.

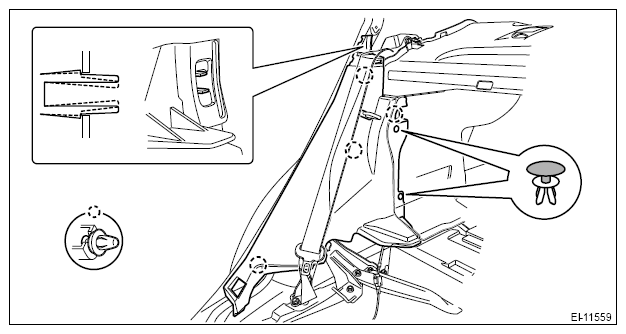

      G13649425Courtesy of SUBARU OF AMERICA, INC.
