Roof Antenna/Telematics Antenna

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lower the trim panel - roof assembly. Refer to EXTERIOR/INTERIOR TRIM>ROOF TRIM>REMOVAL .
    NOTE: Procedures for the trim panel - roof assembly is performed inside the vehicle.
  3. Remove the antenna assembly - radio or telematics.

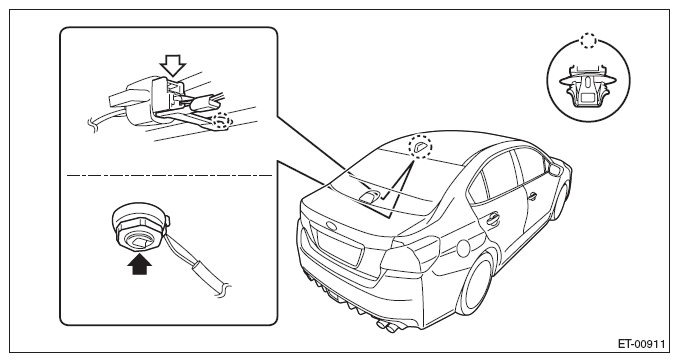

    1. Disconnect the connector, detach the connector clip, and then remove the nut.
      G10270807Courtesy of SUBARU OF AMERICA, INC.
    2. While pressing the temporary retaining claw, remove the antenna assembly - radio or telematics.
      G13201866Courtesy of SUBARU OF AMERICA, INC.
