Console Rear

  1. Remove the socket assembly. Ref. to ENTERTAINMENT AND MONITORING>ACCESSORY POWER SUPPLY SOCKET>REMOVAL>REAR>CONSOLE .

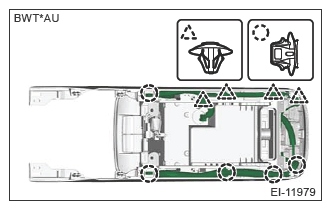

  2. Release the clamps of the cord assembly power and the cord assembly rear seat heater. (Model with AUX unit rear and model with rear seat heater)
    G13953698Courtesy of SUBARU OF AMERICA, INC.

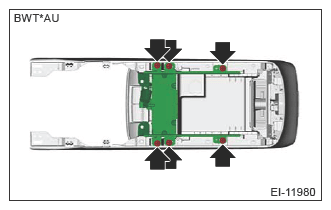

  3. Remove the screws to remove the deck assembly. (Model with CD deck)
    G13953699Courtesy of SUBARU OF AMERICA, INC.

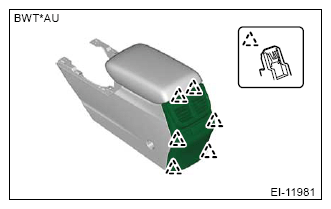

  4. Release the claws and remove the cover rear console assembly.
    G13953700Courtesy of SUBARU OF AMERICA, INC.

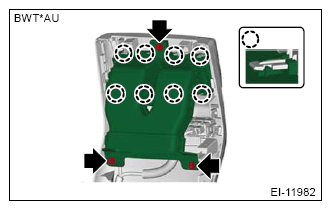

  5. Remove the screws and release the claws, then remove the grille assembly console rear.
    G13953701Courtesy of SUBARU OF AMERICA, INC.

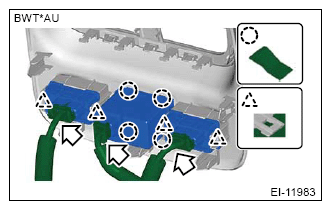

  6. Release the claws and remove the AUX unit assembly power and the switch assembly rear seat heater.
    G13953702Courtesy of SUBARU OF AMERICA, INC.

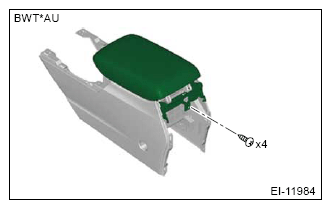

  7. Remove the screws and remove the lid assembly console.
    G13953703Courtesy of SUBARU OF AMERICA, INC.

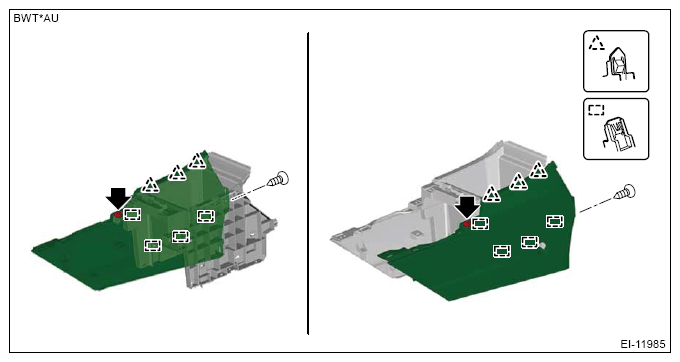

  8. Remove the screws and release the claws, then remove the console box LWR.
    G13953704Courtesy of SUBARU OF AMERICA, INC.
