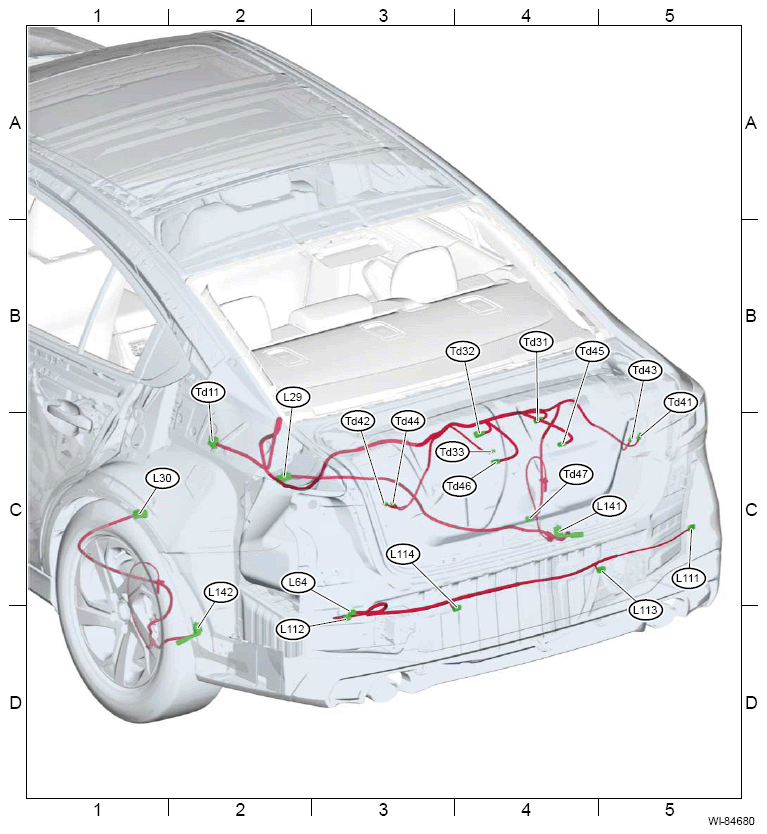

| L29 |
4 |
Gr |
C-2 |
L61 |
2 |
| L30 |
4 |
Gr |
C-1 |
L62 |
| L64 |
8 |
Gr |
D-3 |
L22 |
| L111 |
3 |
B |
C-5 |
|
Sonar sensor (right corner) |
| L112 |
3 |
B |
D-3 |
|
Sonar sensor (left corner) |
| L113 |
3 |
B |
C-5 |
|
Sonar sensor (right inner) |
| L114 |
3 |
B |
D-4 |
|
Sonar sensor (left inner) |
| L141 |
2 |
Gr |
C-4 |
|
Rear brake caliper RH |
| L142 |
2 |
Gr |
D-2 |
|
Rear brake caliper LH |
| Td11 |
17 |
|
C-2 |
L23 |
Rear wiring harness LH |
| Td31 |
2 |
|
C-4 |
|
Trunk opener button |
| Td32 |
4 |
|
C-4 |
|
Rearview camera |
| Td33 |
3 |
|
C-4 |
|
Keyless access exterior antenna (rear) |
| Td41 |
2 |
Gr |
C-5 |
|
Rear finisher light RH (back-up light) |
| Td42 |
2 |
Gr |
C-3 |
|
Rear finisher light LH (back-up light) |
| Td43 |
2 |
|
C-5 |
|
Rear finisher light RH (tail light) |
| Td44 |
2 |
|
C-3 |
|
Rear finisher light LH (tail light) |
| Td45 |
2 |
|
C-4 |
|
License plate light RH |
| Td46 |
2 |
|
C-4 |
|
License plate light LH |
| Td47 |
3 |
|
C-4 |
|
Trunk lid lock actuator & switch |
